Hayward

Variable Speed Horizontal Heat Pump 60K BTU

Product #:HAY-15-1110

Mfg. Part #:HP60CLEE1

  • This product is obsolete.
  • The superseded product was not found.

Hayward HP60CLEE1 Variable Speed Horizontal Heat Pump 60K BTU

Hayward

Variable Speed Horizontal Heat Pump 60K BTU

Product #:HAY-15-1110

Mfg. Part #:HP60CLEE1

EA

Description

Hayward heat pumps are the perfect addition to your swimming pool. They provide the perfect water temperature, even under the harshest conditions, allowing you to swim longer into the evening hours, earlier in the spring, later in the fall.

Documents

No documents available

Feature Bullets

  • Titanium heat exchanger is highly durable and provides excellent resistance to corrosion
  • Complete with a digital keypad allowing all operations to be set and displayed on the control panel
  • Comprised of an efficient rotary compressor and a low noise fan which guarantees its quiet operation
  • Super quiet inverter compressor maintains a peaceful outdoor space
  • Variable-speed ventilation system will provide up to 50% higher energy savings
  • Works fast to heat your pool and maintains the ideal water temperature at all times

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationPool
    • Shipping Dimensions18.5 x 44.5 x 36 inch
    • ChannelNone
    • Commercial, Residential, or ProfessionalResidential
    • Each Product Weight200 pound
    • MaterialTitanium
    • Minimum Sell Quantity1
    • UPC Code0610377421843

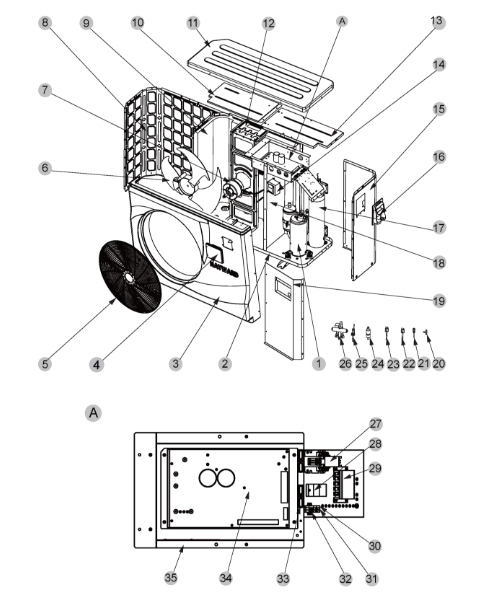

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    HPX80100139
    Compressor
    Product #:
    Mfg #: HPX80100139
    2
    2
    HPX80700454
    Chassis Assembly
    Product #:
    Mfg #: HPX80700454
    3
    3
    HPX809000000085
    Front Panel
    Product #:
    Mfg #: HPX809000000085
    4
    4
    HPX72200516
    LED206
    Product #:
    Mfg #: HPX72200516
    5
    5
    HPX20000-220369
    Fan Net
    Product #:
    Mfg #: HPX20000-220369
    6
    6
    HPX20000-270004
    HAY-151-1043
    Fan Blade for HP70A1/HP75TR Heat Pumps
    Product #: HAY-151-1043
    Mfg #: HPX20000-270004
    7
    7
    HPX20000-330132
    Fan Motor
    Product #:
    Mfg #: HPX20000-330132
    8
    8
    HPX807000000727
    Left Side Panel
    Product #:
    Mfg #: HPX807000000727
    9
    9
    HPX80600044
    Finned Heat Exchanger
    Product #:
    Mfg #: HPX80600044
    10
    10
    HPX80715865
    Support Plate
    Product #:
    Mfg #: HPX80715865
    11
    11
    HPX301090-20080006
    Top Cover
    Product #:
    Mfg #: HPX301090-20080006
    12
    12
    HPX80718435
    Motor Bracket Assembly
    Product #:
    Mfg #: HPX80718435
    13
    13
    HPX80723121
    Electrical Box Cover
    Product #:
    Mfg #: HPX80723121
    14
    14
    HPX82500021
    Reactor
    Product #:
    Mfg #: HPX82500021
    15
    15
    HPX80721065
    Right Side Panel
    Product #:
    Mfg #: HPX80721065

    Wholegoods

    There are no wholegoods available.
