Waterway
Universal Booster 48-Frame Pump with Connectors & Hose Kit .75 HP 115/230V 60Hz
Product #:WWP-10-3048
Mfg. Part #:3810430-1PDA
- This product is obsolete.
- The superseded product was not found.

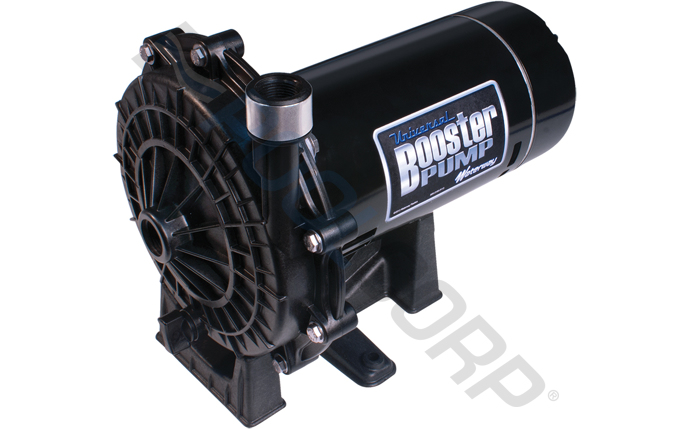

Waterway 3810430-1PDA Universal 48-Frame Booster Pump with Connectors & Hose Kit .75 HP 115/230V 60Hz
Waterway
Universal Booster 48-Frame Pump with Connectors & Hose Kit .75 HP 115/230V 60Hz
Product #:WWP-10-3048
Mfg. Part #:3810430-1PDA
EA
Description
The Waterway Universal 48-Frame Booster Pump with Connectors & Hose Kit comes with everything you need to install or retrofit a pump. It includes a soft tube connector, pump quick connect retainer, and 6' of reinforced flexible pump hose. This product is suitable for all swimming pool pressure cleaners.
Documents
No documents available
Branch Availability
content loaded
Specifications
- BrandWaterway
- ApplicationPool
- Each Product Weight31.63 pound
- Frequency Rating (Hz)60
- Green or Energy Efficient ProductTrue
- Horsepower3 horse power
- Master Carton Quantity1
- Minimum Sell Quantity1
- Pallet Quantity1
- Voltage115V, 230V
- UPC Code806105506252
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

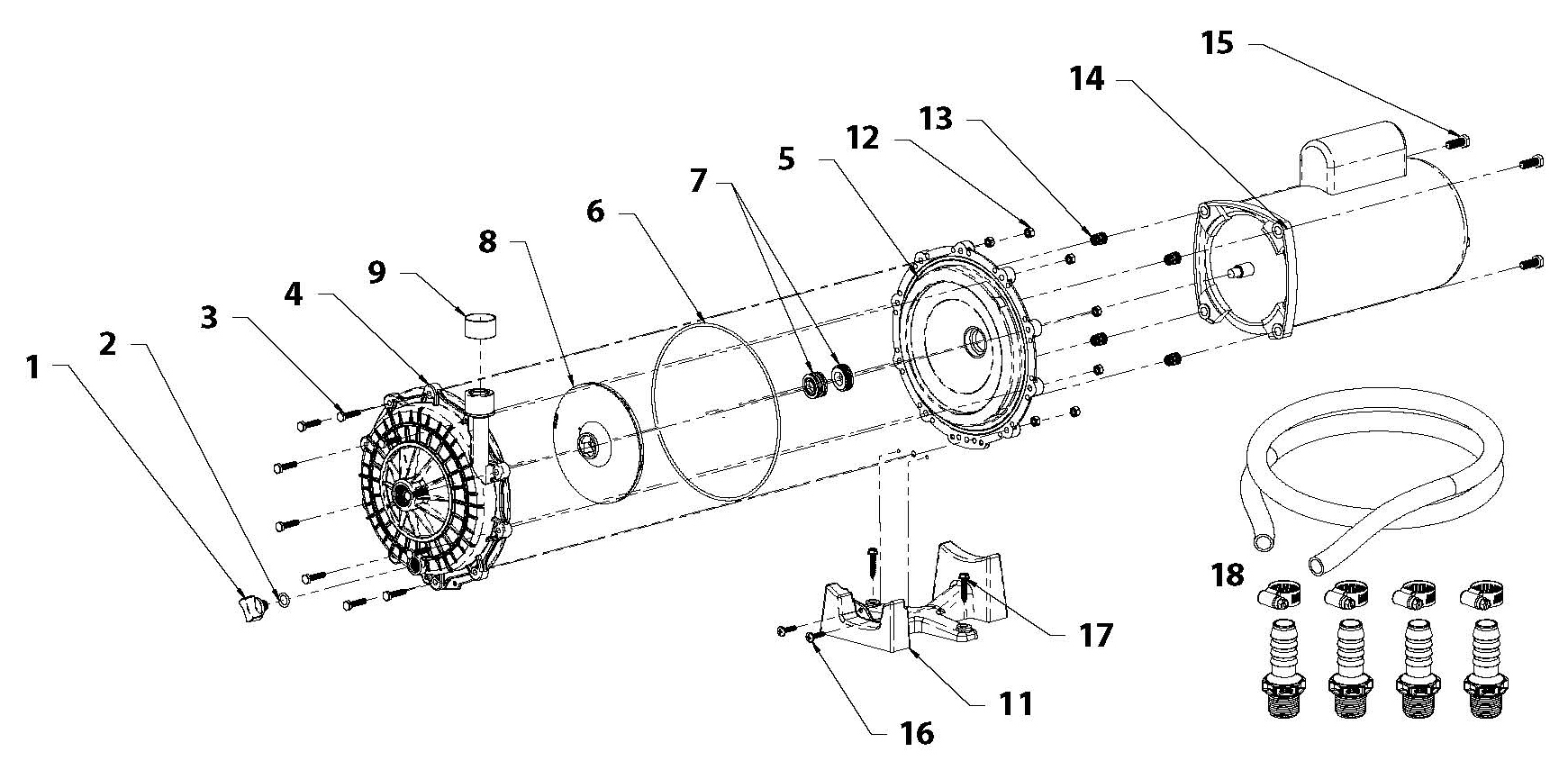

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
2
2
805-0112
SPG-101-0112
O-Ring, #2-112, .487 I.D. X .103 W
Product #: SPG-101-0112
Mfg #: 805-0112
2
2
2
P40
POL-201-3293
Product #: POL-201-3293
Mfg #: P40
2
2
U178-920P
STA-101-3730
Product #: STA-101-3730
Mfg #: U178-920P
2
2
2
3
3
819-2590
Bolt, Hex Hd, 1⁄4"-20 UNC X 1-1⁄8"LG SS (19)
Product #:
Mfg #: 819-2590
4
4
315-8300
SPG-101-8300
Volute�Booster�Pump
Product #: SPG-101-8300
Mfg #: 315-8300
4
5
6
6
7
