Toro

Ultra Buggy® e2500-TS Swivel Material Handling Equipment

Product #:TOC-59-1007

Mfg. Part #:68140

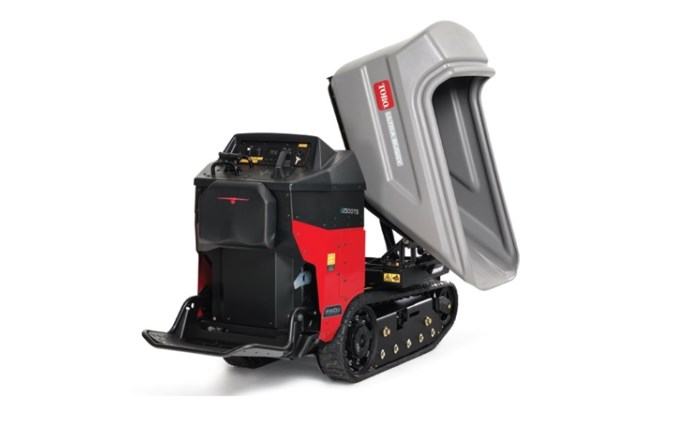

Toro® Ultra Buggy® 68140 e2500-TS Swivel Material Handling Equipment

Toro

Ultra Buggy® e2500-TS Swivel Material Handling Equipment

Product #:TOC-59-1007

Mfg. Part #:68140

EA

Description

The electric swivel Ultra Bugg® e2500-TS gives crews the flawless precision needed to transform jobsites. Operators can unload sand, gravel, concrete and other heavy materials along a 180-degree radius for ultimate precision from any angle. And it’s all powered by Toro’s patented HyperCell® battery technology that delivers up to eight hours of quiet runtime without sacrificing power. Crews will still enjoy the same 2,500-lb carrying capacity of gas models to reduce physical strain and accelerate efficiency on indoor or outdoor jobs.

Feature Bullets

  • HyperCell Power System® delivers up to 8 hours of continuous runtime
  • Up to 2,500 lbs carrying capacity
  • Outstanding 180-degree dump radius makes it easy for users to dump material anywhere along the 180-degree radius
  • Easily fits through standard doors and gates
  • Branch Availability

    content loaded

    Specifications

    • BrandToro
    • ApplicationIndoor, Outdoor
    • Shipping Dimensions100.7 x 31.5 x 52.1 inch
    • ChannelMaintenance Channel
    • Each Product Weight2080 pound
    • Minimum Sell Quantity1
    • Commercial, Residential, or ProfessionalProfessional
    • Warranty - General1 years
    • UPC Code021038681405

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

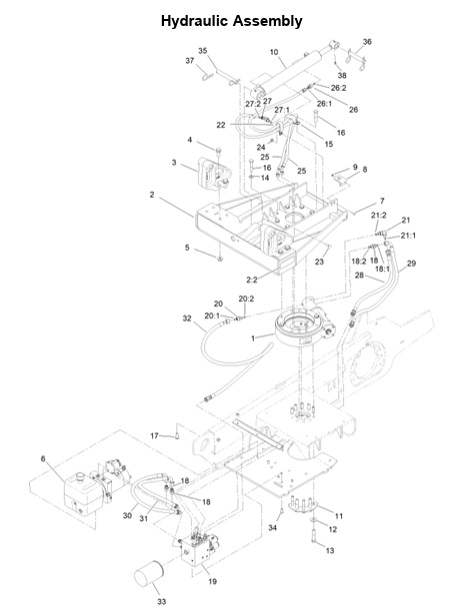

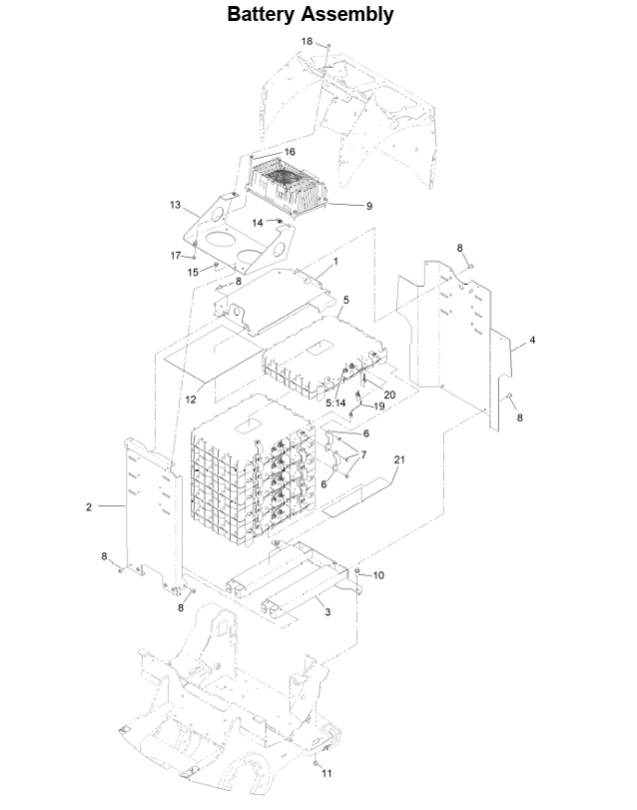

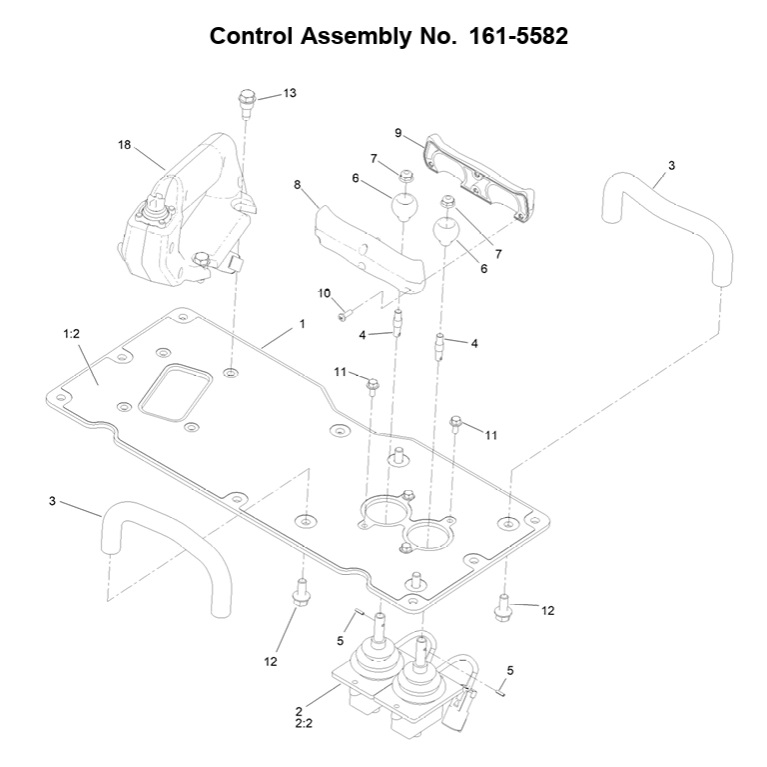

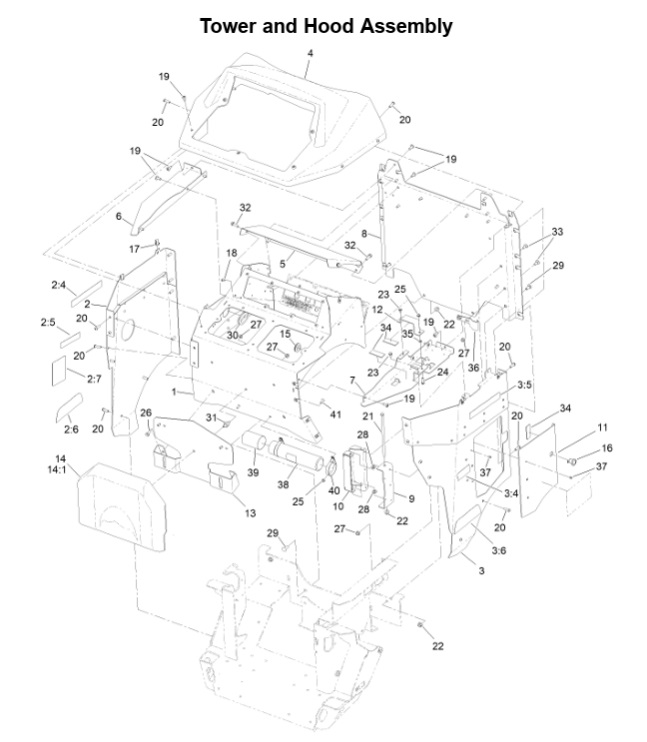

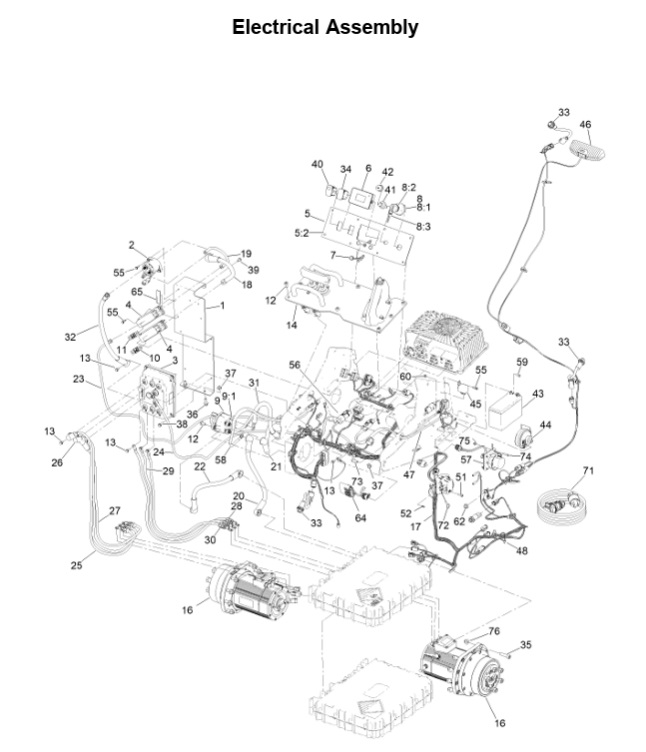

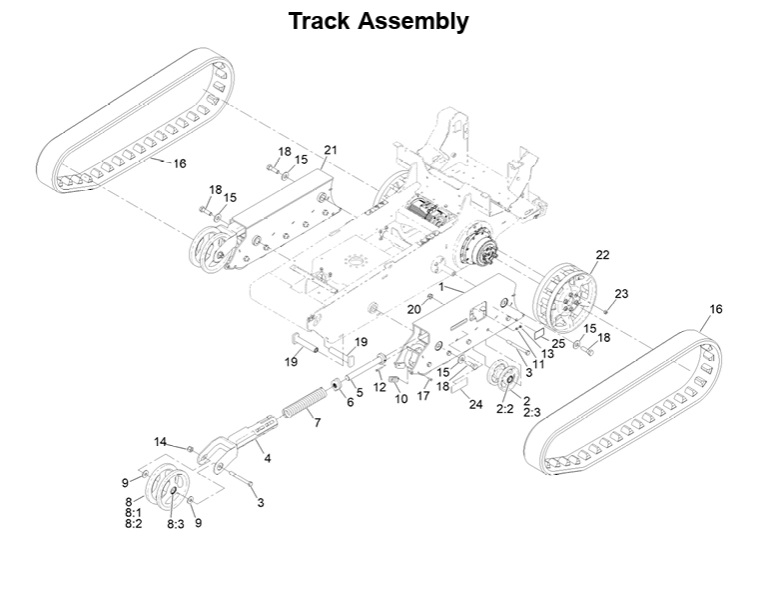

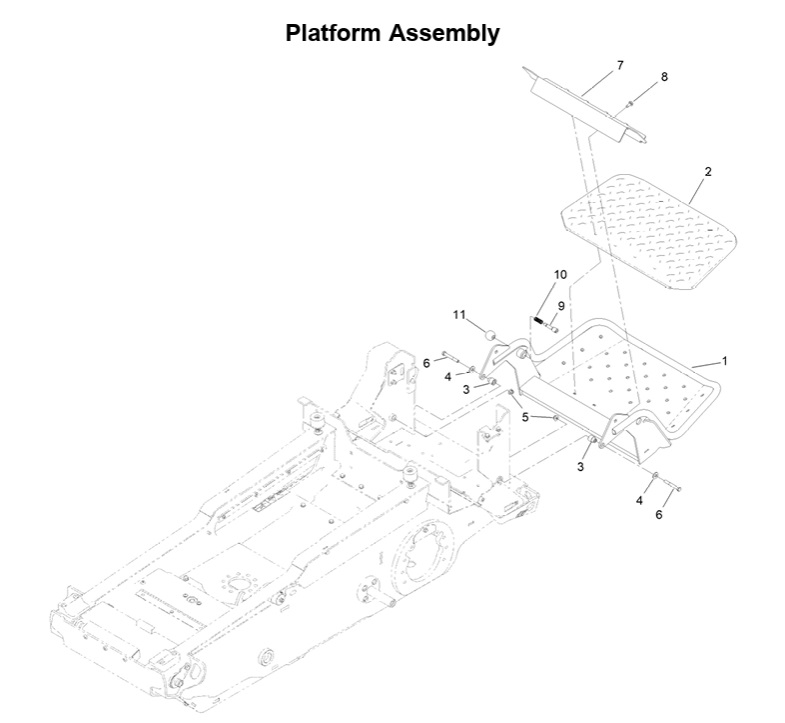

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    161-7554-05
    Bracket-Wire Channel
    Product #:
    Mfg #: 161-7554-05
    Notes:

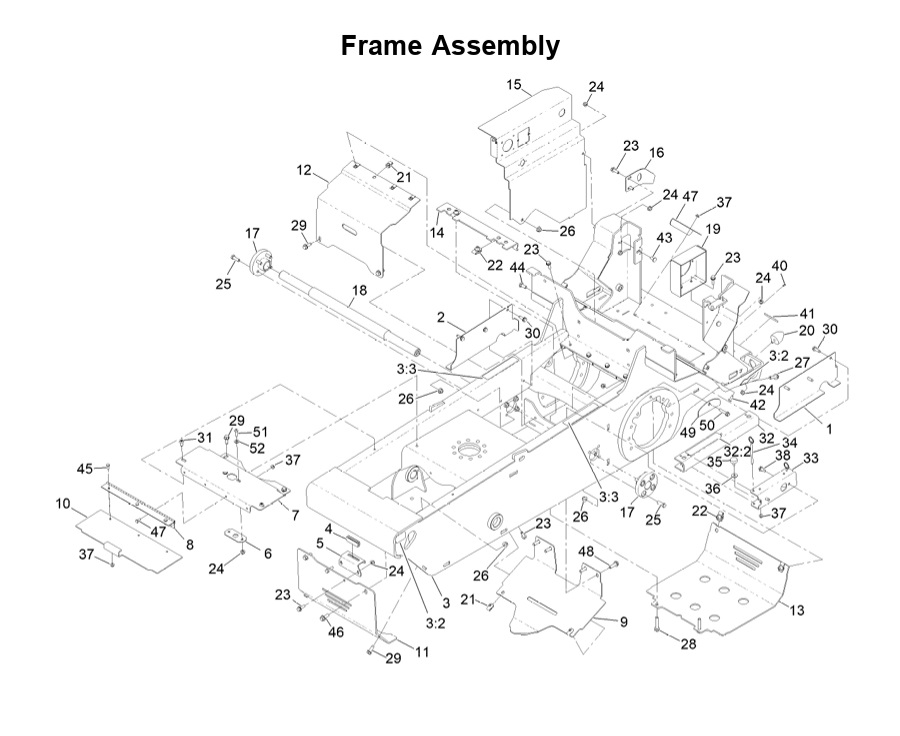

    Frame Assembly Qty 1
    2
    2
    161-9558-05
    Bracket-Wire Channel,RH
    Product #:
    Mfg #: 161-9558-05
    Notes:
    Frame Assembly Qty 1
    3
    3
    163-4461
    Frame-Swivel
    Product #:
    Mfg #: 163-4461
    Notes:
    Frame Assembly Qty 1
    3:2
    3:2
    147-6707
    Decal-Lift, Tie Down
    Product #:
    Mfg #: 147-6707
    Notes:
    Frame Assembly Qty 4
    1:2
    1:2
    115-4858
    TOC-591-3687
    Product #: TOC-591-3687
    Mfg #: 115-4858
    Notes:

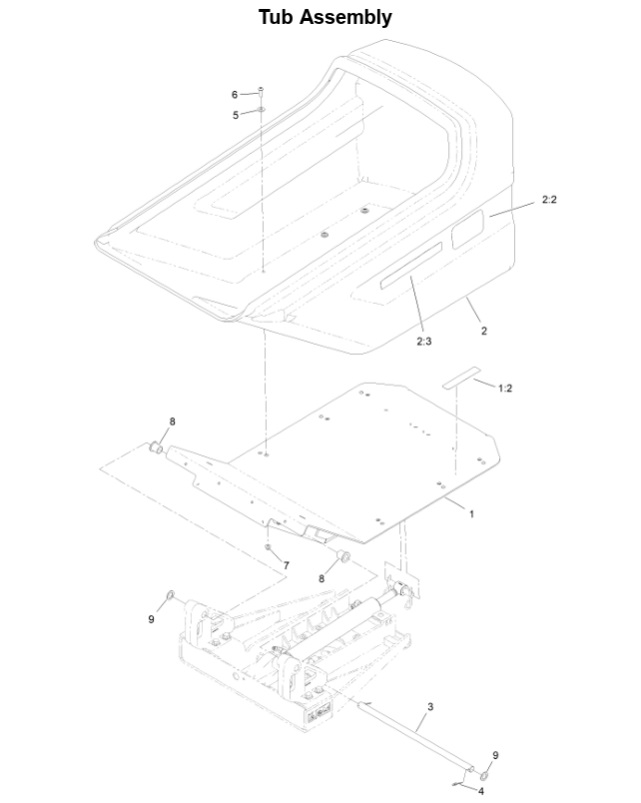

    Tub Assembly Qty 1
    4
    4
    99-3497
    Magnet
    Product #:
    Mfg #: 99-3497
    Notes:
    Frame Assembly Qty 1
    5
    5
    161-7591-05
    Bracket-Magnet
    Product #:
    Mfg #: 161-7591-05
    Notes:
    Frame Assembly Qty 1
    6
    6
    161-7588-05
    Bracket-Prox Sensor
    Product #:
    Mfg #: 161-7588-05
    Notes:
    Frame Assembly Qty 1
    7
    7
    161-5598-05
    Cover-Hydraulics
    Product #:
    Mfg #: 161-5598-05
    Notes:
    Frame Assembly Qty 1
    8
    8
    132-9021
    Hinge-Hood
    Product #:
    Mfg #: 132-9021
    Notes:
    Frame Assembly Qty 1
    9
    9
    161-7559-05
    Cover-Slew
    Product #:
    Mfg #: 161-7559-05
    Notes:
    Frame Assembly Qty 1
    10
    10
    161-7557-05
    Cover-HYD, Hinged
    Product #:
    Mfg #: 161-7557-05
    Notes:
    Frame Assembly Qty 1
    11
    11
    161-7558-05
    Cover-Swivel, Front
    Product #:
    Mfg #: 161-7558-05
    Notes:
    Frame Assembly Qty 1
    12
    12
    161-7553-05
    Cover-Motor
    Product #:
    Mfg #: 161-7553-05
    Notes:
    Frame Assembly Qty 1
    13
    13
    163-4476-05
    Panel-Rear Skid, High Lift
    Product #:
    Mfg #: 163-4476-05
    Notes:
    Frame Assembly Qty 1

    Wholegoods

    There are no wholegoods available.
