Stealth 5.5 HP Pump Full-Rated TEFC 1-Phase 60Hz 208-230 VAC

Product #:TLD-10-1019

Mfg. Part #:SHPF5.0TEFC

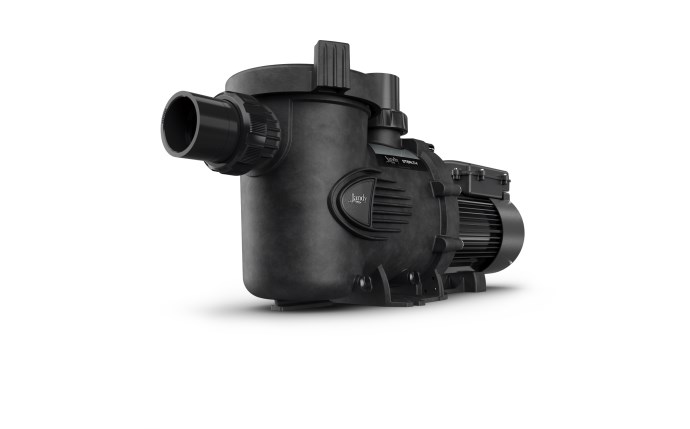

Jandy Stealth SHPF5.0TEFC 5.5 HP Pump Full-Rated TEFC 1-Phase 60Hz 208-230 VAC

Jandy

Stealth 5.5 HP Pump Full-Rated TEFC 1-Phase 60Hz 208-230 VAC

Product #:TLD-10-1019

Mfg. Part #:SHPF5.0TEFC

EA

Description

Jandy Stealth 5.0HP single-speed pump is designed for ease of installation and trouble-free maintenance and includes a 5.5 HP, 1-Phase TEFC 208-230V single-speed motor.

Documents

Feature Bullets

  • Large, smooth surface pump basket for ease of maintenance
  • 2.5" x 3" Unions for high flow
  • 5.5 HP, 1-phase TEFC motor accepts 208-230V

    • Branch Availability

    content loaded

    Specifications

    • BrandJandy
    • Amperage22.7 amperage
    • Shipping Dimensions33 x 14.5 x 18 inch
    • ApplicationPool
    • ChannelNone
    • ColorBlack
    • Commercial, Residential, or ProfessionalCommercial
    • Discharge Size2.5 inch
    • Each Product Weight97 pound
    • Horsepower5.5 horse power
    • Minimum Sell Quantity1
    • Pallet Quantity4
    • PhaseSingle
    • RPMs Max3450
    • Suction Size2.5 inch
    • Thrust HP5.5
    • Voltage208V, 230V
    • Wattage24.7 watt
    • Weighted Energy Factor (WEF)1.8
    • UPC Code052337327671

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

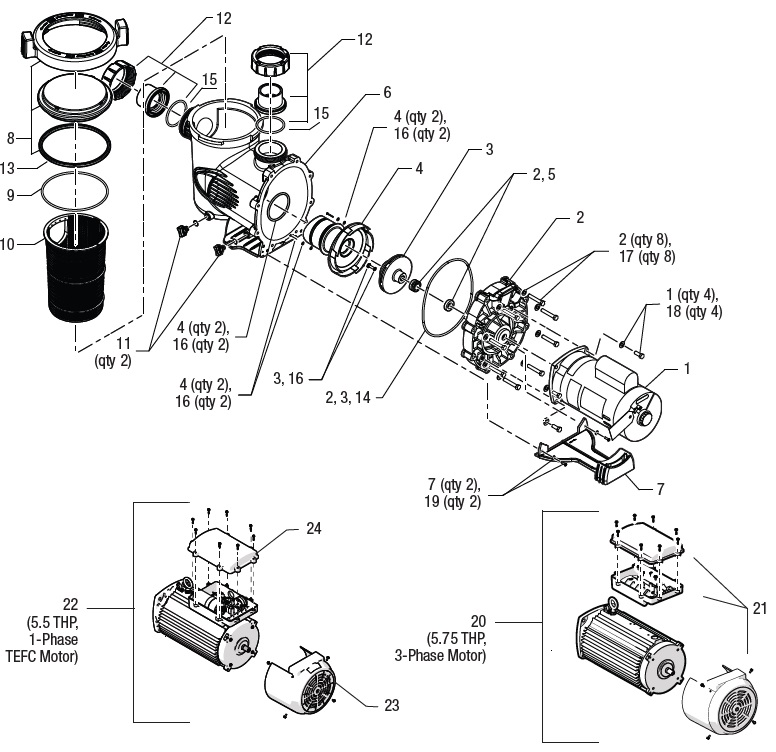

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    R0445114
    TLD-101-7222
    1 Speed Pump Motor with Hardware
    Product #: TLD-101-7222
    Mfg #: R0445114
    Notes:
    Model 0.5
    1
    1
    R0445101
    TLD-101-6111
    1 Speed Motor for SHPF Stealth Series Pump .75HP
    Product #: TLD-101-6111
    Mfg #: R0445101
    Notes:
    Model 0.75
    1
    1
    R0445102
    TLD-101-7226
    Single-speed Motor & Hardware, SHPF
    Product #: TLD-101-7226
    Mfg #: R0445102
    Notes:
    Model 1.0
    1
    1
    R0445103
    POL-101-5565
    Single-speed Motor & Hardware, SHPF
    Product #: POL-101-5565
    Mfg #: R0445103
    Notes:
    Model 1.5
    1
    1
    R0445104
    TLD-101-7237
    1 Speed Pump Motor with Hardware
    Product #: TLD-101-7237
    Mfg #: R0445104
    Notes:
    Model 2.0
    1
    1
    R0445105
    TLD-101-6106
    1 Speed Motor for SHPF Stealth Series Pump 3HP
    Product #: TLD-101-6106
    Mfg #: R0445105
    Notes:
    Model 3.0
    1
    1
    R0490200
    TLD-101-7240
    Single Speed Pump Motor with Hardware 5HP
    Product #: TLD-101-7240
    Mfg #: R0490200
    Notes:
    Model 5.0
    1
    1
    R0479301
    TLD-101-7217
    Single Speed Motor SHPM 0.75
    Product #: TLD-101-7217
    Mfg #: R0479301
    Notes:
    Model 0.75
    1
    1
    R0479302
    TLD-101-7220
    Single Speed Motor SHPM 1.0
    Product #: TLD-101-7220
    Mfg #: R0479302
    Notes:
    Model 1.0
    1
    1
    R0479303
    TLD-101-7225
    Single Speed Motor SHPM 1.5
    Product #: TLD-101-7225
    Mfg #: R0479303
    Notes:
    Model 1.5
    1
    1
    R0479304
    TLD-101-7233
    Single-speed Motor & Hardware, SHPM
    Product #: TLD-101-7233
    Mfg #: R0479304
    Notes:
    Model 2.0
    1
    1
    R0479305
    TLD-101-7238
    Single-speed Motor & Hardware, SHPM
    Product #: TLD-101-7238
    Mfg #: R0479305
    Notes:
    Model 2.5
    1
    1
    R0479307
    TLD-101-9307
    2 Speed Up-Rated Motor for SHPM Stealth Series Pump 1.5HP
    Product #: TLD-101-9307
    Mfg #: R0479307
    Notes:
    Model 1.5
    1
    1
    R0479308
    TLD-101-9308
    2 Speed Up-Rated Motor for SHPM/PHPF Stealth/PlusHP Series Pump 2HP
    Product #: TLD-101-9308
    Mfg #: R0479308
    Notes:
    Model 2.0
    1
    1
    R0479309
    TLD-101-9309
    2 Speed Motor for PHPF PlusHP Series Pump 2.5HP
    Product #: TLD-101-9309
    Mfg #: R0479309
    Notes:
    Model 2.5

    Wholegoods

    There are no wholegoods available.
