ProSeries 16" Top Mount Sand Filter

Product #:HAY-05-136

Mfg. Part #:S166TW

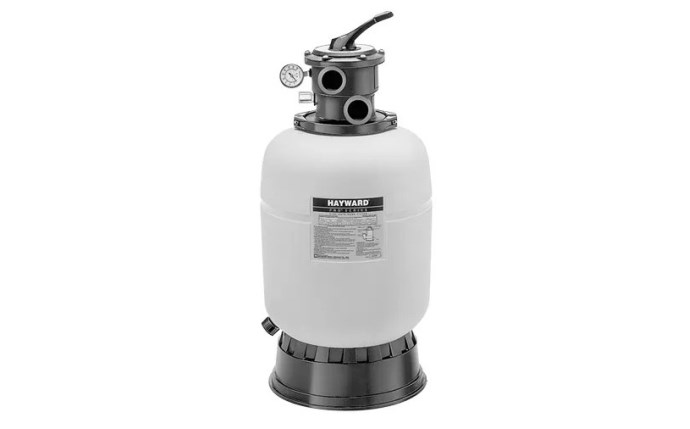

Hayward ProSeries S166TW 16" Top Mount Sand Filter

Hayward

ProSeries 16" Top Mount Sand Filter

Product #:HAY-05-136

Mfg. Part #:S166TW

EA

Description

ProSeries high-rate sand filters are molded of durable, corrosion-proof material for long-lasting performance. They feature attractive, unitized tank construction for years of trouble-free operation with only minimal care. ProSeries sets the standard for performance, value and dependability.

Documents

Feature Bullets

  • Flange clamp design allows 360° rotation of valve to simplify plumbing
  • Integral top diffuser ensures even distribution of water over the top of the sand media bed
  • Full-size internal piping provides smooth, free-flowing performance
  • Large pressure sand/water drain for rapid winterizing or servicing
  • Unitized, corrosion-proof filter tank molded of rugged, colorfast polymeric material for dependable, all-weather performance
  • 6- or 7-position Hayward® 2" VariFlo® control valve with easy-to-use lever-action handle lets you dial any of the valve/filter functions
  • Integral sight glass lets you see when backwash cycle is completed
  • Precision engineered umbrella-fold self cleaning laterals for balanced flow and backwashing, plus easy serviceability

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationPool
    • Shipping Dimensions16.3 x 16.3 x 34.5 inch
    • ChannelNone
    • Commercial, Residential, or ProfessionalResidential
    • Each Product Weight25 pound
    • Minimum Sell Quantity1
    • Pallet Quantity12
    • Warranty - General2 years
    • UPC Code0610377146081

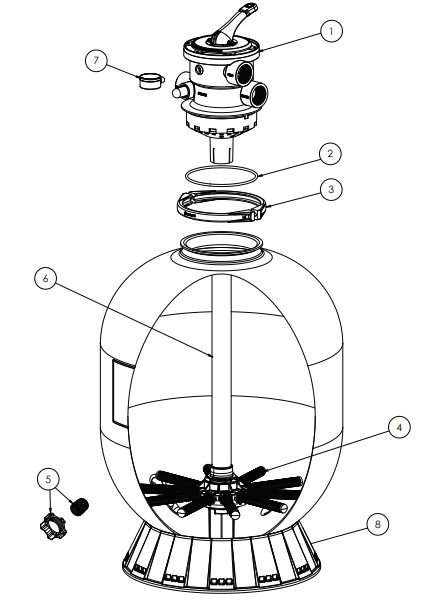

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1a
    1a
    SP0714T
    HAY-06-271
    1 1/2" Black Vari-Flo Top Mount Multiport Valve
    Product #: HAY-06-271
    Mfg #: SP0714T
    1b
    1b
    SP071620T
    2" VariFlo XL Control Valve
    Product #:
    Mfg #: SP071620T
    2
    2
    GMX600F
    HAY-051-1867
    ProSeries™ Valve/Tank O-Ring
    Product #: HAY-051-1867
    Mfg #: GMX600F
    3a
    3a
    GMX600NM
    HAY-051-2344
    ProSeries™ Flange Valve Clamp
    Product #: HAY-051-2344
    Mfg #: GMX600NM
    3b
    3b
    SX310N
    HAY-051-8258
    ProSeries™ Flange Clamp
    Product #: HAY-051-8258
    Mfg #: SX310N
    4a
    4a
    SX200QNRPAK10
    16", 18", 21", 22" Lateral ribbed (10)
    Product #:
    Mfg #: SX200QNRPAK10
    4c
    4c
    SX240DNRPAK10
    30", 36" lateral ribbed end (10)
    Product #:
    Mfg #: SX240DNRPAK10
    5a
    5a
    SX180HG
    HAY-051-2194
    ProSeries™ Drain Cap and Gasket
    Product #: HAY-051-2194
    Mfg #: SX180HG
    5b
    5b
    SX180LA
    HAY-051-2173
    ProSeries™ Drain Cap Kit
    Product #: HAY-051-2173
    Mfg #: SX180LA
    6a
    6a
    SX164DAS
    HAY-051-7905
    16" Folding Lateral Assy
    Product #: HAY-051-7905
    Mfg #: SX164DAS
    6b
    6b
    SX180DAS
    HAY-051-7906
    18" Folding Lateral Assy
    Product #: HAY-051-7906
    Mfg #: SX180DAS
    6c
    6c
    SX210DAS
    HAY-051-7907
    Folding Lateral Assy 21"
    Product #: HAY-051-7907
    Mfg #: SX210DAS
    6d
    6d
    SX210DA2S
    Folding Lateral Assembly 21" T2 with 2" Standpipe
    Product #:
    Mfg #: SX210DA2S
    6e
    6e
    SX220DAS
    HAY-051-7909
    22" Folding Lateral Assy
    Product #: HAY-051-7909
    Mfg #: SX220DAS
    6f
    6f
    SX220DA2S
    Folding Lateral Assembly 22" T2 with 2" Standpipe
    Product #:
    Mfg #: SX220DA2S
