Pentair

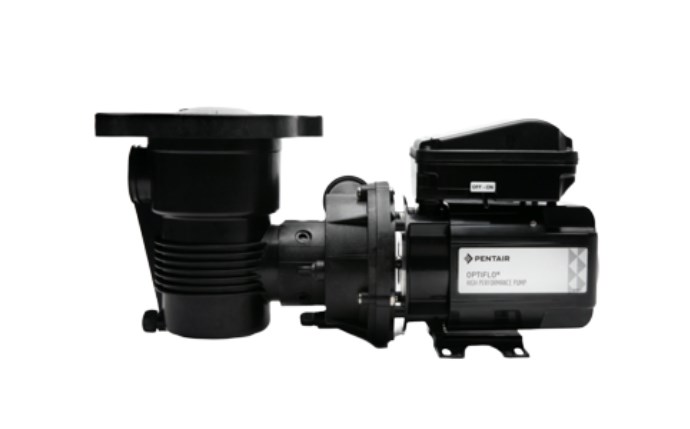

OptiFlo Vertical Discharge Aboveground Pool Pump with 3' Cord 1THP
Product #:PAC-10-9196
Mfg. Part #:EC-348196
- This product is obsolete.
- The superseded product was not found.
Pentair OptiFlo EC-348196 Vertical Discharge Aboveground Pool Pump with 3' Cord 1THP
Pentair
OptiFlo Vertical Discharge Aboveground Pool Pump with 3' Cord 1THP
Product #:PAC-10-9196
Mfg. Part #:EC-348196
EA
Description
OptiFlo pumps for aboveground pools feature a revolutionary design that delivers dependable high flow performance. The OptiFlo pump features a 48 frame-thru bolt motor, easy access to change the discharge port position, service the impeller, and an innovative Cam and Ramp lid. The OptiFlo pump is available with 3 ft. cord, with a twist lock or standard plug. The OptiFlo line also now includes models that comply with updated Department of Energy (DOE) regulations for energy efficiency standards.
Documents
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandPentair
- ApplicationAbove Ground, Pool
- Shipping Dimensions23.5 x 8.88 x 12.5 inch
- ChannelNone
- ColorBlack
- Commercial, Residential, or ProfessionalResidential
- Cord Length3 foot
- Cord TypeTwist-Lock
- Each Product Weight28.5 pound
- Minimum Sell Quantity1
- Motor Enclosure TypeTotally Enclosed Fan Cooled
- Motor Frame Size48
- Warranty - General2 years
- UPC Code788379500139
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

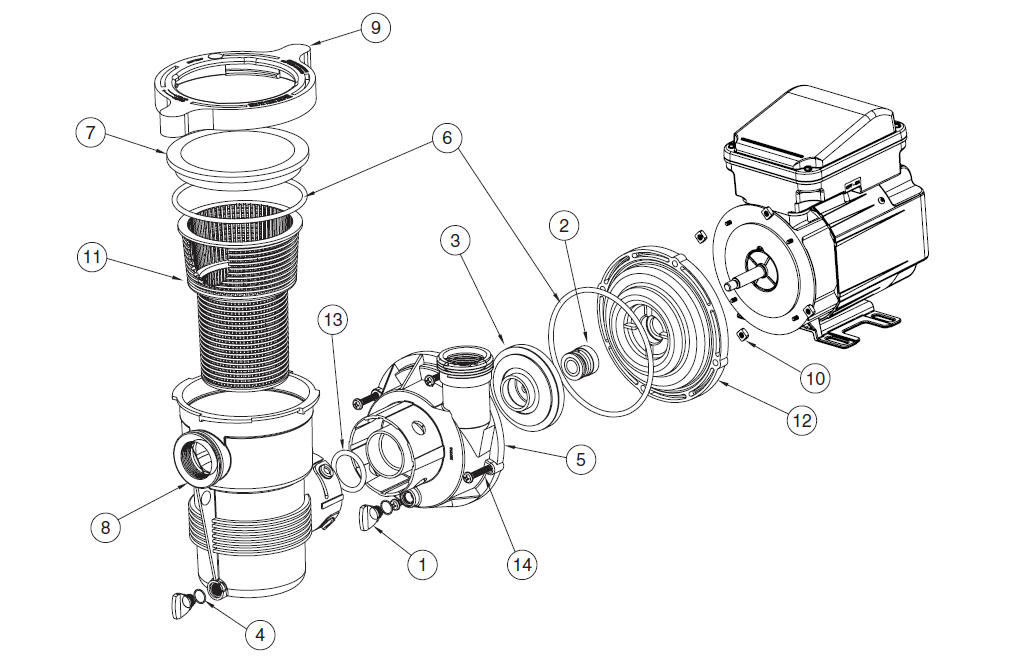

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
357161Z
PUR-101-1064
Product #: PUR-101-1064
Mfg #: 357161Z
Notes:
3 req1
2
2
2
2
2
17304-0100S
STA-101-1465
Product #: STA-101-1465
Mfg #: 17304-0100S
2
2
92500150
AQF-101-8565
5/8" SHAFT REPLACEMENT SEAL
Product #: AQF-101-8565
Mfg #: 92500150
2
2
319-3010B
WWP-101-1385
SUPREME PUMP PUMP SEAL KIT
Product #: WWP-101-1385
Mfg #: 319-3010B
2
2
2920060603
SPK-101-2748
Product #: SPK-101-2748
Mfg #: 2920060603
3
4
5
6
6
357255Z
PAC-101-1042
Product #: PAC-101-1042
Mfg #: 357255Z
Notes:
2-357 2 req6
6
O-150-9
ALA-601-7352
Product #: ALA-601-7352
Mfg #: O-150-9
Notes:
2-357 2 req6
6
357255Z
PAC-101-1042
Product #: PAC-101-1042
Mfg #: 357255Z
Notes:
2-357 2 reqWholegoods
There are no wholegoods available.
