Waterway Mustang MS-270 2.7HP Variable Speed In-Ground Pump
EA
Description
Waterway Mustang MS-270 2.7HP Variable Speed In-Ground Pump - This 2.7HP Variable Speed In-Ground Pump is heavy duty and ultra quiet. It features a control panel that is easy to program and operate. Its sturdy adapter base provides for a drop in replacement for Super Pump®, Intelliflo®, and most other brands of pool pumps. Silicon carbide Viton shaft seals provide for superior wear and chemical resistance.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandWaterway
- ApplicationInground, Pool
- Shipping Dimensions28.88 x 11.75 x 13.75 inch
- ColorGray
- Each Product Weight41.815 pound
- Frequency Rating (Hz)50/60
- Horsepower2.7 horse power
- Minimum Sell Quantity1
- Motor Enclosure TypeTotally Enclosed Fan Cooled
- Motor SpeedVariable
- Pallet Quantity20
- PhaseSingle
- RPMs Max3450
- RPMs Min450
- Voltage230V
- Warranty - General2 years
- UPC Code806105673497
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

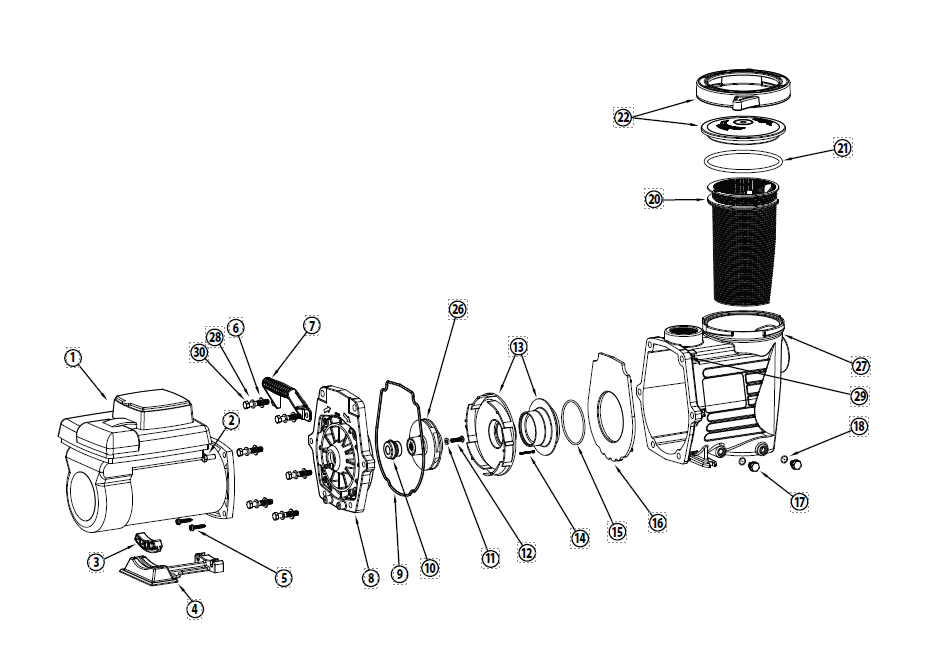

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
2
2
819-0035
Bolt
Product #:
Mfg #: 819-0035
Notes:
.375-16 X .875 Long3
3
672-1350
Motor Support Supra Max
Product #:
Mfg #: 672-1350
4
4
319-1500
Motor Base
Product #:
Mfg #: 319-1500
5
5
819-0013
Screw Slot Hex Washer
Product #:
Mfg #: 819-0013
Notes:
1/4" X 1_1/4"6
6
820-0017
WWP-101-8071
Product #: WWP-101-8071
Mfg #: 820-0017
Notes:
Pool Pumps7
8
8
311-1457GI
WWP-101-1002
Product #: WWP-101-1002
Mfg #: 311-1457GI
9
9
711-1400
WWP-251-1800
Gasket, Face Plate
Product #: WWP-251-1800
Mfg #: 711-1400
9
9
806-1400
WWP-251-1400
Product #: WWP-251-1400
Mfg #: 806-1400
10
10
319-3100B
WWP-101-0100
Pump Seal Set-Viton
Product #: WWP-101-0100
Mfg #: 319-3100B
10
10
10
10
10
P55
POL-201-3297
Product #: POL-201-3297
Mfg #: P55
10
