Raypak

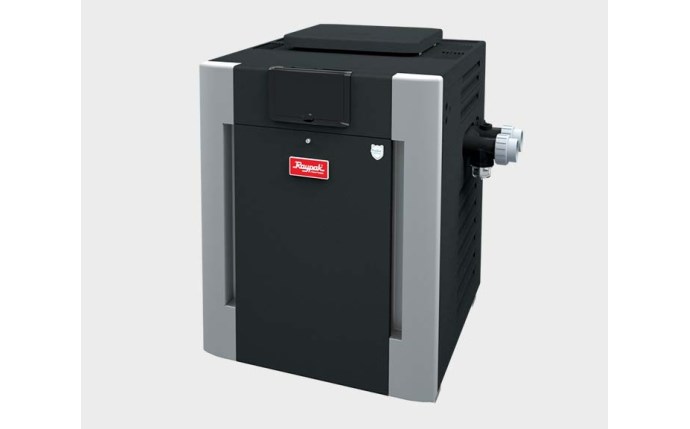

Model R406A Digital Pool & Spa Heater Natural Gas 399 MBTUH 120/240V
Product #:RAY-15-0059
Mfg. Part #:009223
Raypak® 009223 P-R406A-EN-C Model R406A Digital Pool & Spa Heater Natural Gas 399 MBTUH 120/240V with Copper Heat Exchanger
Raypak
Model R406A Digital Pool & Spa Heater Natural Gas 399 MBTUH 120/240V
Product #:RAY-15-0059
Mfg. Part #:009223
EA
Description
The sleek and stylish Raypak® Digital Gas Pool and Spa Heater features innovative technology designed to keep your pool or spa at the perfect temperature for your enjoyment. Built to withstand various weather conditions, this modern pool and spa heater is the perfect solution for environments requiring efficiency, convenience and versatility. Thanks to a brilliant low-profile design, corrosion resistant cabinet made of galvanized metal, copper fin tube heat exchanger, and a bevy of advanced-engineered materials, enjoying your heater year round is a breeze.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandRaypak
- Amperage2 amperage
- Shipping Dimensions31 x 37 x 45 inch
- ApplicationPool, Spa
- BTU Input399 British thermal unit
- Cabinet Depth29 inch
- Cabinet Height38 inch
- Cabinet Width28 inch
- ChannelNone
- ColorGray
- Commercial, Residential, or ProfessionalCommercial, Residential
- Each Product Weight249 pound
- Flow Rate Max100 gal/min
- Flow Rate Min40 gal/min
- Fuel TypeNatural Gas
- Gas Connection FITNPT
- Minimum Sell Quantity1
- PhaseSingle
- Voltage120V, 240V
- Warranty - General1 years
- Electrical Input120 volt
- Water Connection 1 FITNPT
- UPC Code840891012825
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

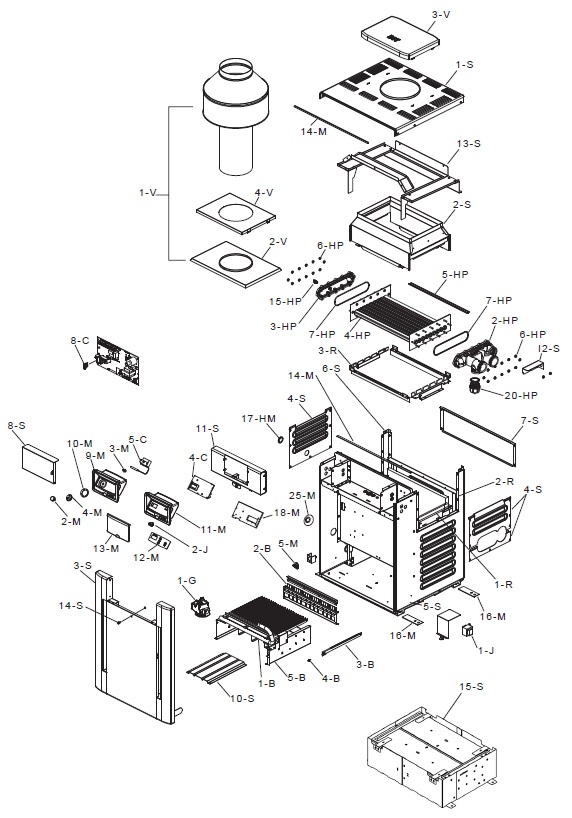

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1-B
1-B
010394F
RAY-151-1563
Product #: RAY-151-1563
Mfg #: 010394F
Notes:
For installation at over 2,000 feet above sea level, derate 4% per 1,000 feet above sea level. Refer to the heater's rating plate1-B
1-B
010402F
RAY-151-8790
Product #: RAY-151-8790
Mfg #: 010402F
Notes:
For installation at over 2,000 feet above sea level, derate 4% per 1,000 feet above sea level. Refer to the heater's rating plate1-B
1-B
010410F
RAY-151-8789
Product #: RAY-151-8789
Mfg #: 010410F
Notes:
For installation at over 2,000 feet above sea level, derate 4% per 1,000 feet above sea level. Refer to the heater's rating plate2-B
2-B
010418F
RAY-151-1879
Product #: RAY-151-1879
Mfg #: 010418F
3-B
3-B
301210/27
Burner
Product #:
Mfg #: 301210/27
4-B
4-B
350079F/27
Burner Orifice #50
Product #:
Mfg #: 350079F/27
Notes:
0-1999 ft elevation4-B
4-B
350080F/27
Burner Orifice #51
Product #:
Mfg #: 350080F/27
Notes:
2000-5999 ft elevation4-B
4-B
350081F/27
Burner Orifice #52
Product #:
Mfg #: 350081F/27
Notes:
6000-8999 ft elevation4-B
4-B
350347F/27
Burner Orifice #53
Product #:
Mfg #: 350347F/27
Notes:
9000 + ft elevation5-B
5-B
010424F
RAY-151-1721
Product #: RAY-151-1721
Mfg #: 010424F
4-C
4-C
100-10000345
RAY-151-0058
Product #: RAY-151-0058
Mfg #: 100-10000345
5-C
5-C
003346F
RAY-151-3564
Product #: RAY-151-3564
Mfg #: 003346F
8-C
1-G
1-G
003898F
RAY-151-3568
Product #: RAY-151-3568
Mfg #: 003898F
1-G
1-G
003900F
RAY-151-3570
Product #: RAY-151-3570
Mfg #: 003900F
Wholegoods
There are no wholegoods available.
