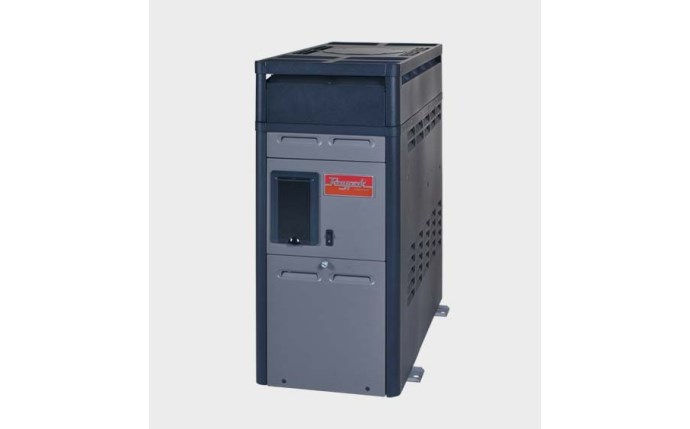

Model R156A Digital Pool & Spa Heater Natural Gas 150 MBTUH 120/240V

Product #:RAY-15-0060

Mfg. Part #:014785


Raypak® 014785 P-R156A-EN-C Model R156A Digital Pool & Spa Heater Natural Gas 150 MBTUH 120/240V

Raypak

Model R156A Digital Pool & Spa Heater Natural Gas 150 MBTUH 120/240V

Product #:RAY-15-0060

Mfg. Part #:014785

EA

Description

The Raypak® 156A is the perfect choice for larger above-ground pools, spas and inground pools. The 156A has up to 50% more BTU’s than the competitors’, which means quicker heat-up. Your pool is always ready when you have a Raypak® on duty.

Documents

Feature Bullets

  • Equipped with a microprocessor-based control that allows you to set your pool and spa temperature precisely at your preferred setting just by pressing an up or down temperature control button
  • On-board diagnostic controls that let the user and the service professional know what is going on with the heater at all times
  • Compatible with most major pool control and remote systems on the market today
  • Built to last by using the highest quality integral copper fin tube available
  • Built-in automatic bypass to help prevent condensation, scaling and erosion by balancing the flow going into the heat exchanger
  • Utilize the latest technology in rust free polymer header design along with an integral copper finned-tube heat exchanger and stainless steel tube sheets
  • The stainless steel hybrid burner system is inherently forgiving and extremely robust; the burner is self-adjusting to compensate for gas pressure fluctuations, allowing the heater to always burn clean and safe
  • Uses a spark-to-pilot ignition system

    • Branch Availability

    content loaded

    Specifications

    • BrandRaypak
    • Amperage4 amperage
    • Shipping Dimensions32 x 16 x 30 inch
    • ApplicationAbove Ground, Pool, Spa
    • BTU Input105 British thermal unit
    • Cabinet Depth156 inch
    • Cabinet Height27.5 inch
    • Cabinet Width13.89 inch
    • ChannelNone
    • ColorGray
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Each Product Weight100 pound
    • Flow Rate Max70 gal/min
    • Flow Rate Min20 gal/min
    • Fuel TypeNatural Gas
    • Gas Connection0.5 inch
    • Gas Connection FITNPT
    • Heater ColorGray
    • Minimum Sell Quantity1
    • PhaseSingle
    • Voltage120V, 240V
    • Warranty - General2 years
    • Water Connection 12 inch
    • Electrical Input120 volt
    • Water Connection 1 FITNPT
    • UPC Code840891045762

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

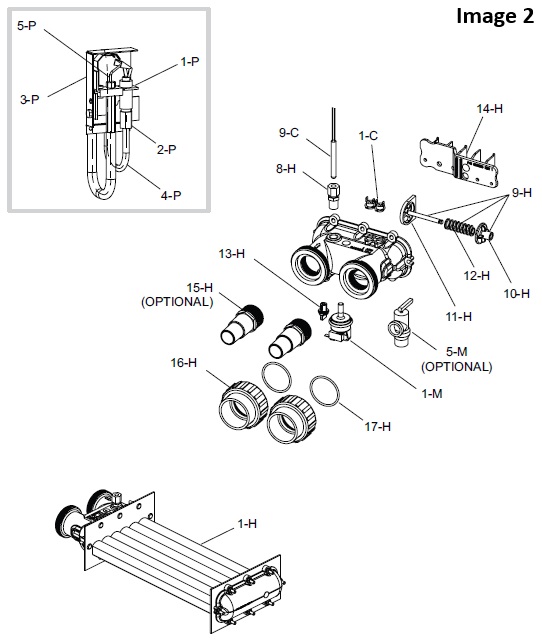

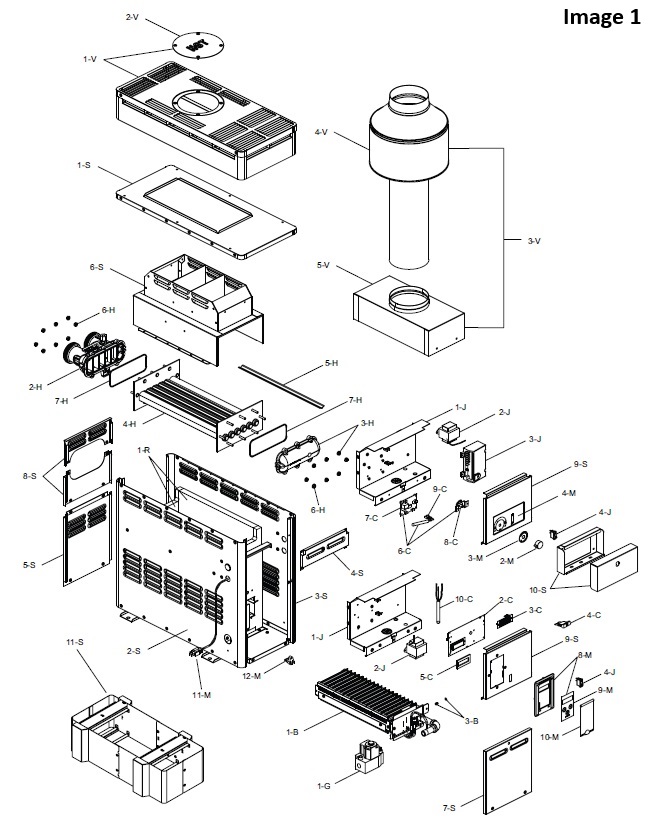

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1-B
    1-B
    014842F
    RAY-151-8751
    Natural Gas Burner Tray For 156A Pool & Spa Heater
    Product #: RAY-151-8751
    Mfg #: 014842F
    Notes:
    Image 1, For altitudes above 2,000 feet above sea level, consult the factory
    3-B
    3-B
    014858F/19
    Burner Orifice Natural 1.30 mm
    Product #:
    Mfg #: 014858F/19
    Notes:
    Image 1, For altitudes above 2,000 feet above sea level, consult the factory
    2-C
    2-C
    100-10000345
    RAY-151-0058
    Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters
    Product #: RAY-151-0058
    Mfg #: 100-10000345
    Notes:
    Image 1
    3-C
    3-C
    013640F
    RAY-151-3850
    LCD Display
    Product #: RAY-151-3850
    Mfg #: 013640F
    Notes:
    Image 1, For units Manufactured up to 1/2023
    4-C
    4-C
    013733F
    RAY-151-3733
    5 Amp PC Board Fuse Kit
    Product #: RAY-151-3733
    Mfg #: 013733F
    Notes:
    Image 1
    5-C
    5-C
    014866F
    RAY-151-8344
    Seal Gasket For 156A Pool & Spa Heater
    Product #: RAY-151-8344
    Mfg #: 014866F
    Notes:
    Image 1
    10-C
    10-C
    009577F
    RAY-151-1208
    100K Electronic Three Wire Temperature Sensor
    Product #: RAY-151-1208
    Mfg #: 009577F
    Notes:
    Image 1
    1-G
    1-G
    014867F
    RAY-151-8339
    Natural Gas Combination Valve For 106A/156A Pool & Spa Heater
    Product #: RAY-151-8339
    Mfg #: 014867F
    Notes:
    Image 1
    2-H
    2-H
    015547F
    RAY-151-8359
    156 Polymer Inlet/Outlet Header
    Product #: RAY-151-8359
    Mfg #: 015547F
    Notes:
    Image 1
    3-H
    3-H
    011596F
    RAY-151-1596
    130A Polymer Return Header
    Product #: RAY-151-1596
    Mfg #: 011596F
    Notes:
    Image 1, Includes Flange Nut Kit
    4-H
    4-H
    014875F
    RAY-151-1907
    Copper Tube Bundle for Model 156A Pool Heater
    Product #: RAY-151-1907
    Mfg #: 014875F
    Notes:
    Image 1, WARNING: The Hydraulic conditions or water chemistry that caused the tube bundle to fail have very likely also damaged the bypass valve. We recommend you inspect the bypass assembly. Failure to do so could cause premature failure of this replacement part.
    6-H
    6-H
    008259F
    RAY-151-1391
    Flange Nut Kit for Model R185B, R265A, R335A Pool Heater, 1/4-20 UNC
    Product #: RAY-151-1391
    Mfg #: 008259F
    Notes:
    Image 1
    7-H
    7-H
    011600F
    RAY-151-1600
    O-Ring Gasket
    Product #: RAY-151-1600
    Mfg #: 011600F
    Notes:
    Image 1, 2 Pieces
    4-J
    4-J
    009493F
    RAY-151-9493
    Rocker Switch For Model R185B, R265B, R335B, R405B Pool Heater, SPST
    Product #: RAY-151-9493
    Mfg #: 009493F
    Notes:
    Image 1
    2-M
    2-M
    009499F
    RAY-151-1467
    Thermostat Knob For Model R185B, R265B, R335B, R405B Millivolt Pool Heater
    Product #: RAY-151-1467
    Mfg #: 009499F
    Notes:
    Image 1
