MaxFlo VS™ 500 Variable Speed Pump 1.65HP 115/230V

Product #:HAY-10-0232

Mfg. Part #:SP23520VSP

  • This product is obsolete.
  • The superseded product was not found.

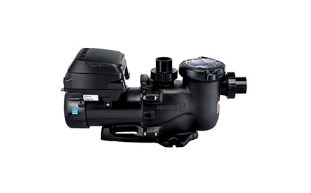

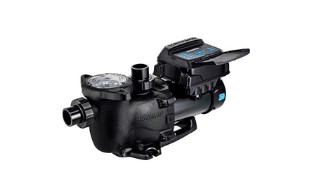

Hayward SP23520VSP MaxFlo VS™ 500 Variable Speed Pump 1.65HP 115/230V, Expert Line

Hayward

MaxFlo VS™ 500 Variable Speed Pump 1.65HP 115/230V

Product #:HAY-10-0232

Mfg. Part #:SP23520VSP

EA

Description

The MaxFlo VS™ 500 Variable Speed Pump built with dual voltage capability, is the newest addition to the MaxFlo™ pump family that provides up to 80% energy savings over single speed pumps. MaxFlo VS™ 500 is an easy drop-in upgrade that will provide years of powerful performance.

Documents

Feature Bullets

  • Upgraded dual voltage motor drive that maintains optimal operating efficiency; Can operate in stand alone mode or connect to any automation system; Extended life Viton pump seal provides improved resistance against chemical imbalances; Intuitive control pad can be rotated in four directions on the pump or removed and wall mounted; Designed to replace most medium head pumps up to 1.65 total HP

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationInground, Pool, Spa
    • Shipping Dimensions30 x 12.4 x 16 inch
    • ChannelNone
    • ColorBlack
    • Each Product Weight51 pound
    • Frequency Rating (Hz)60
    • Green or Energy Efficient ProductTrue
    • Horsepower1.65 horse power
    • Minimum Sell Quantity1
    • Motor SpeedVariable
    • Pallet Quantity15
    • Product Height11.16 inch
    • Product Width9.69 inch
    • RPMs Max3450
    • RPMs Min600
    • Standards ApprovalsEnergy Star Certified, cULus Certified
    • Voltage115V, 230V
    • Warranty - General3 years
    • UPC Code0610377339384

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1A
    1A
    SPX2300DLS
    HAY-101-2300
    Strainer Cover Kit for MaxFlo Pump
    Product #: HAY-101-2300
    Mfg #: SPX2300DLS
    Notes:
    Includes: Strainer Cover, Lock-Ring, O-Ring
    1B
    1B
    SPX2300DLSB
    MaxFlo Biguanide Strainer Cover Kit
    Product #:
    Mfg #: SPX2300DLSB
    Notes:
    Includes:Strainer Cover, Lock-Ring, O-Ring (NOT Pressure Testable)
    2
    2
    SPX2300Z4
    HAY-101-2302
    Strainer Cover O-Ring for MaxFlo XL Pump
    Product #: HAY-101-2302
    Mfg #: SPX2300Z4
    3
    3
    SPX2300M
    HAY-101-2303
    Strainer Basket for MaxFlo XL Pump
    Product #: HAY-101-2303
    Mfg #: SPX2300M
    4
    4
    SPX2300AA
    MaxFlo Pump Strainer Housing
    Product #:
    Mfg #: SPX2300AA
    5
    5
    SPX4000FG
    HAY-101-1402
    1/4" Drain Plug with O-Ring
    Product #: HAY-101-1402
    Mfg #: SPX4000FG
    5
    5
    O-25-9-10
    SPG-601-1136
    O-Ring Air Bleeder Adapter 10 Pack
    Product #: SPG-601-1136
    Mfg #: O-25-9-10
    5
    5
    154661Z
    PAC-051-2844
    #2-111 Air Bleeder Adapter O-Ring
    Product #: PAC-051-2844
    Mfg #: 154661Z
    5
    5
    805-0111
    EXECUTIVE WET END ORING
    Product #:
    Mfg #: 805-0111
    6
    6
    SPX2700ZPAK
    MaxFlo II Hardware Pack
    Product #:
    Mfg #: SPX2700ZPAK
    Notes:
    (Includes: 4 Housing Bolts, Seal-Plate Spacers & Square Nuts
    7
    7
    SPX2300Z3PAK3
    MaxFlo Pump Diffuser Screw
    Product #:
    Mfg #: SPX2300Z3PAK3
    8
    8
    SX220Z2
    HAY-051-8242
    SwimClear™/ProGrid™ Vertical Grid DE Bulkhead O-Ring
    Product #: HAY-051-8242
    Mfg #: SX220Z2
    9
    9
    SPX2300B
    MaxFlo XL Pump Diffuser
    Product #:
    Mfg #: SPX2300B
    10
    10
    SPX2710CM
    HAY-101-2737
    1.5HP MaxFlo II Impeller
    Product #: HAY-101-2737
    Mfg #: SPX2710CM
    11
    11
    GMX600F
    HAY-051-1867
    ProSeries™ Valve/Tank O-Ring
    Product #: HAY-051-1867
    Mfg #: GMX600F
