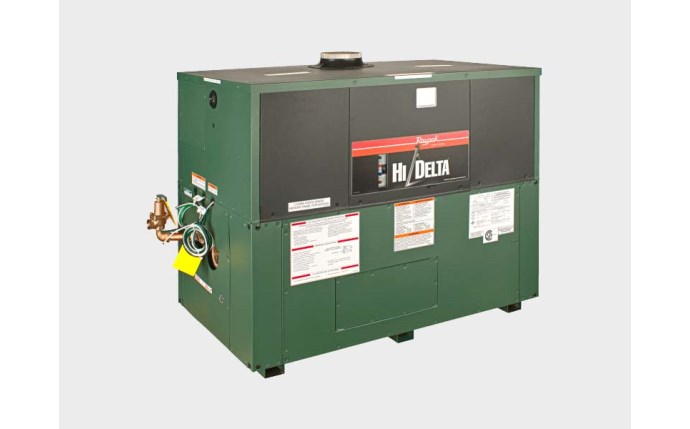

Raypak Hi Delta 016099 P-992C 990K LP IID Cold Run Heater
EA
Description
Raypak’s Hi Delta is easy to install, operate and service. The Hi Delta has a patented burner with an innovative design that provides an optimized air-gas pathway for complete combustion. This makes the Hi Delta the most adaptable sealed-combustion heater on the market today. The touch panel display on the Hi Delta includes onboard diagnostics. In the event of any system problems, technicians can quickly review the fault history of the unit.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandRaypak
- ApplicationPool, Spa
- Shipping Dimensions33 x 57.1 x 42 inch
- BTU Output822690 British thermal unit
- ChannelNone
- ColorGreen
- Commercial, Residential, or ProfessionalCommercial, Professional
- Each Product Weight1075 pound
- Flow Rate Max132 gal/min
- Flow Rate Min43 gal/min
- Fuel TypePropane
- Master Carton Quantity1
- Minimum Sell Quantity1
- Pallet Quantity1
- PhaseSingle
- UPC Code840328412549
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

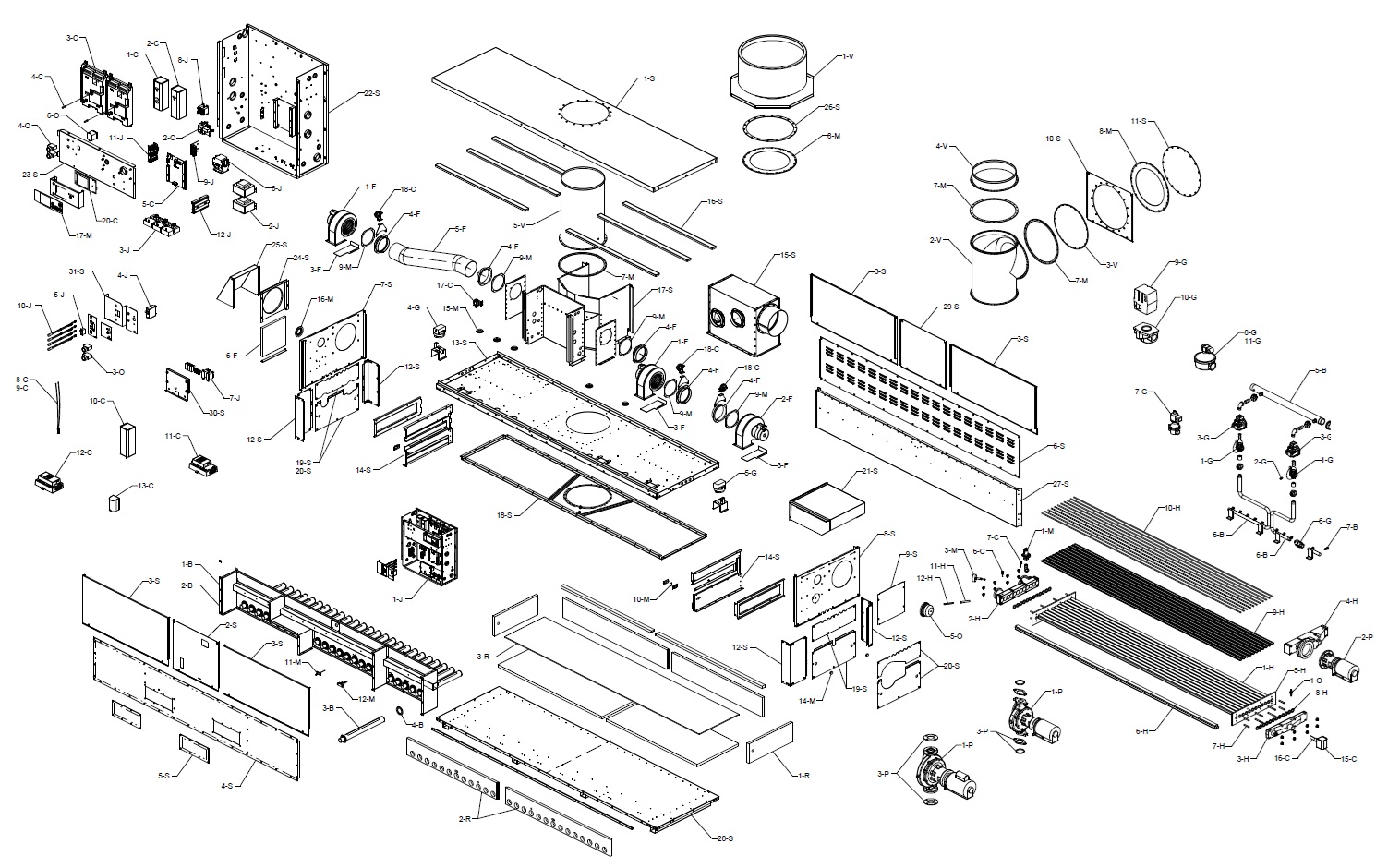

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1-B
1-B
009598F
Burner Assy w/Burners
Product #:
Mfg #: 009598F
2-B
2-B
009604F
Burner Mounting Assy
Product #:
Mfg #: 009604F
3-B
3-B
007617F/11
Burner
Product #:
Mfg #: 007617F/11
4-B
5-B
5-B
009610F
Manifold Upper
Product #:
Mfg #: 009610F
6-B
6-B
009616F
Manifold Lower
Product #:
Mfg #: 009616F
7-B
7-B
100-10000976
Natural Gas # 28 (Low Gas Pressure) QTY 11
Product #:
Mfg #: 100-10000976
7-B
7-B
100-10000974
Natural Gas # 33 QTY 11
Product #:
Mfg #: 100-10000974
7-B
7-B
N/A
Natural Gas # 35
Product #:
Mfg #: N/A
7-B
7-B
100-10000975
Propane Gas # 52 QTY 11
Product #:
Mfg #: 100-10000975
1-C
1-C
1-C
008081F
Manual-Reset Adjustable High-Limit 200 F Max
Product #:
Mfg #: 008081F
1-C
2-C
2-C
007141F
Auto-Reset Adjustable High-Limit 240 F Max
Product #:
Mfg #: 007141F
2-C
2-C
006445F
Auto-Reset Adjustable High-Limit 180 F Max
Product #:
Mfg #: 006445F
