Raypak
Hi Delta Natural Gas Heater 1530K BTU with CAL CODE
Product #:RAY-15-0004
Mfg. Part #:100-10006501

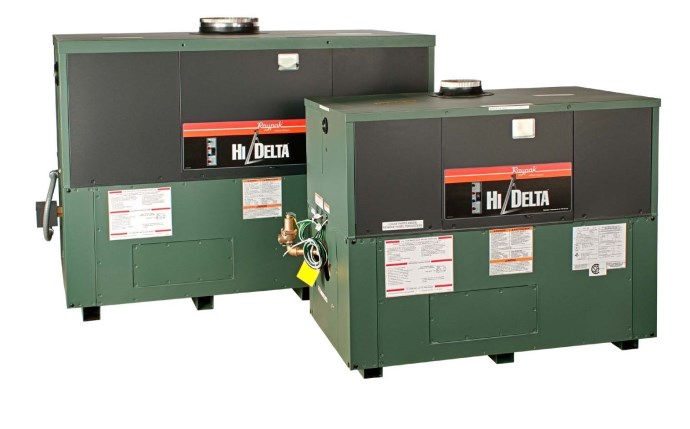

Raypak Hi Delta 100-10006501 Natural Gas Heater 1530K BTU with CAL CODE
Raypak
Hi Delta Natural Gas Heater 1530K BTU with CAL CODE
Product #:RAY-15-0004
Mfg. Part #:100-10006501
EA
Description
Raypak’s Hi Delta® is easy to install, operate and service. The Hi Delta has a patented burner with an innovative design that provides an optimized air-gas pathway for complete combustion. This makes the Hi Delta® the most adaptable sealed-combustion heater on the market today. The touch panel display on the Hi Delta® includes onboard diagnostics. In the event of any system problems, technicians can quickly review the fault history of the unit.
The Hi Delta® product family covers the full spectrum of both indoor and outdoor applications including pool and spa heating, apartments complexes, gyms, schools, day spas, aquatic centers, hotels, and resorts. When installed indoors, the Hi Delta’s versatility is revealed via smaller vent diameters, direct-venting capability, and the convenience of stacking to decrease the footprint for multiple units
The Hi Delta® product family covers the full spectrum of both indoor and outdoor applications including pool and spa heating, apartments complexes, gyms, schools, day spas, aquatic centers, hotels, and resorts. When installed indoors, the Hi Delta’s versatility is revealed via smaller vent diameters, direct-venting capability, and the convenience of stacking to decrease the footprint for multiple units
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandRaypak
- ApplicationPool, Spa
- Shipping Dimensions33 x 80 x 42 inch
- BTU Output1271430 British thermal unit
- ChannelNone
- ColorGreen
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight1188 pound
- FinishStandard
- Flow Rate Max132 gal/min
- Fuel TypeNatural Gas
- Minimum Sell Quantity1
- PhaseSingle
- Thermal Efficiency83
- Warranty - AdditionalHeat Exchanger - 5 year
- Warranty - General1 years
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

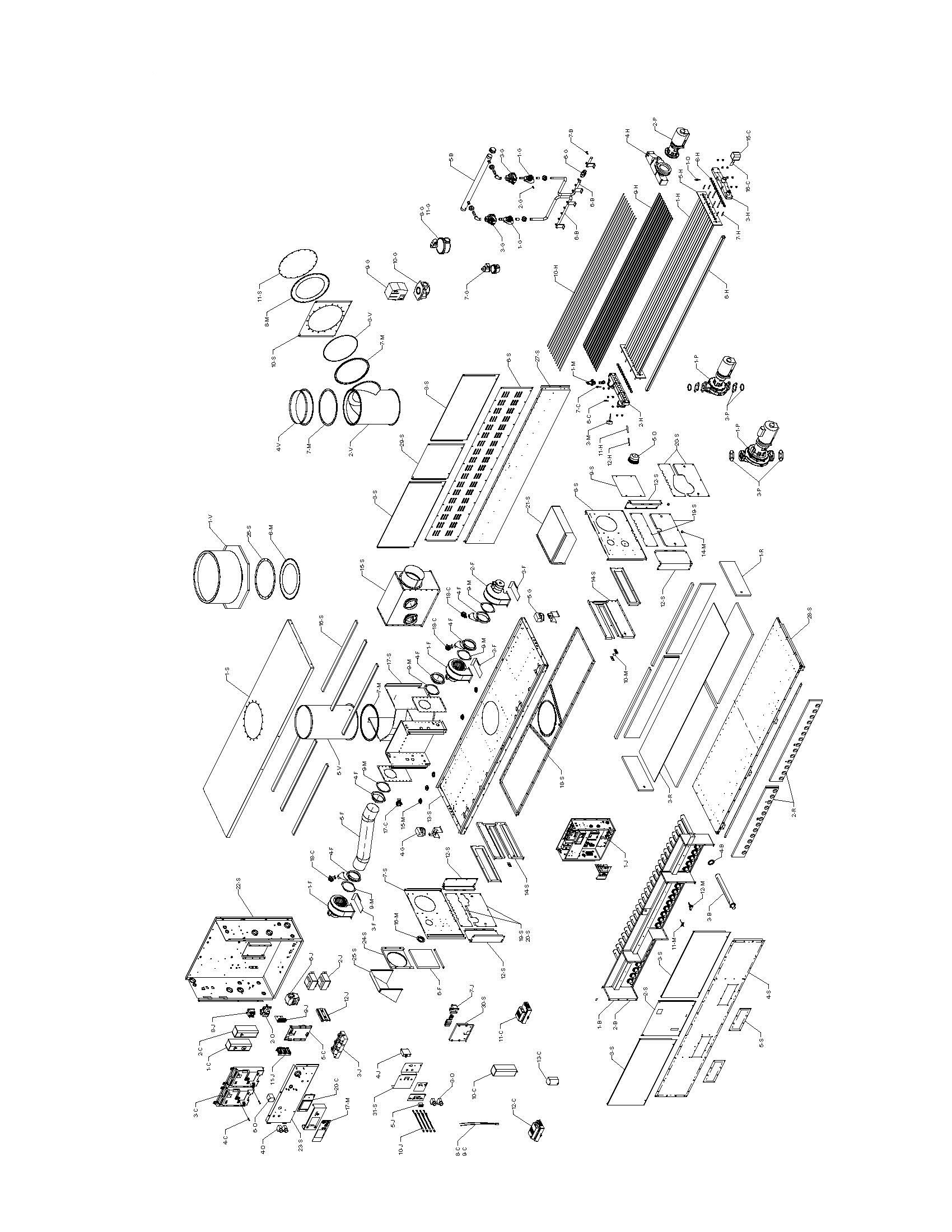

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes

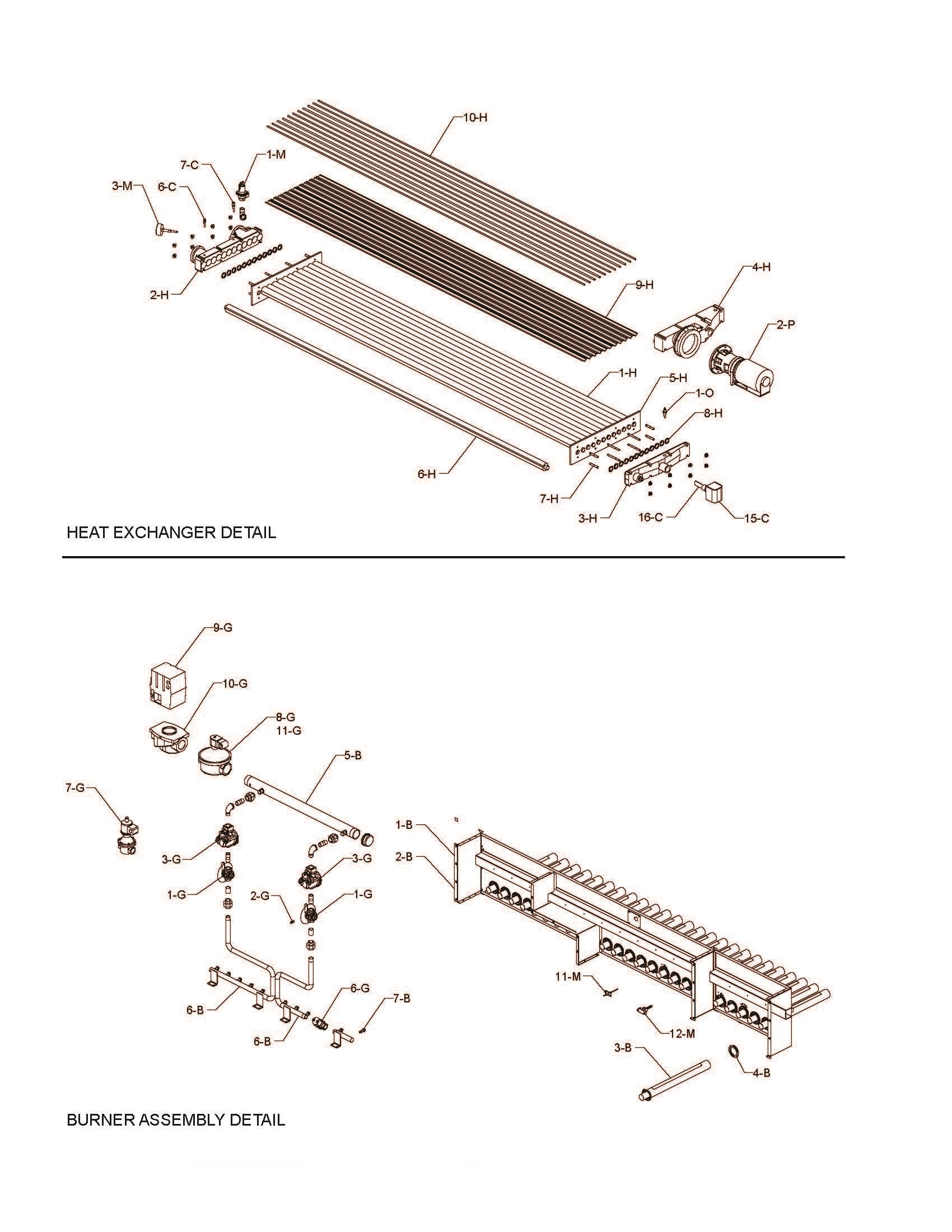

1-B
1-B
009600F
Burner Assy w/Burners
Product #:
Mfg #: 009600F
2-B
2-B
009606F
Burner Mounting Assy
Product #:
Mfg #: 009606F
3-B
3-B
007617F/ 17
Burner
Product #:
Mfg #: 007617F/ 17
4-B
5-B
5-B
009612F
Manifold Upper
Product #:
Mfg #: 009612F
6-B
6-B
008972F
Manifold Lower
Product #:
Mfg #: 008972F
7-B
7-B
100-10000990
Natural Gas # 28 (Low Gas Pressure)
Product #:
Mfg #: 100-10000990
Notes:
QTY177-B
7-B
100-10000985
Natural Gas # 33
Product #:
Mfg #: 100-10000985
Notes:
QTY177-B
7-B
100-10000980
Propane Gas # 52
Product #:
Mfg #: 100-10000980
Notes:
QTY171-C

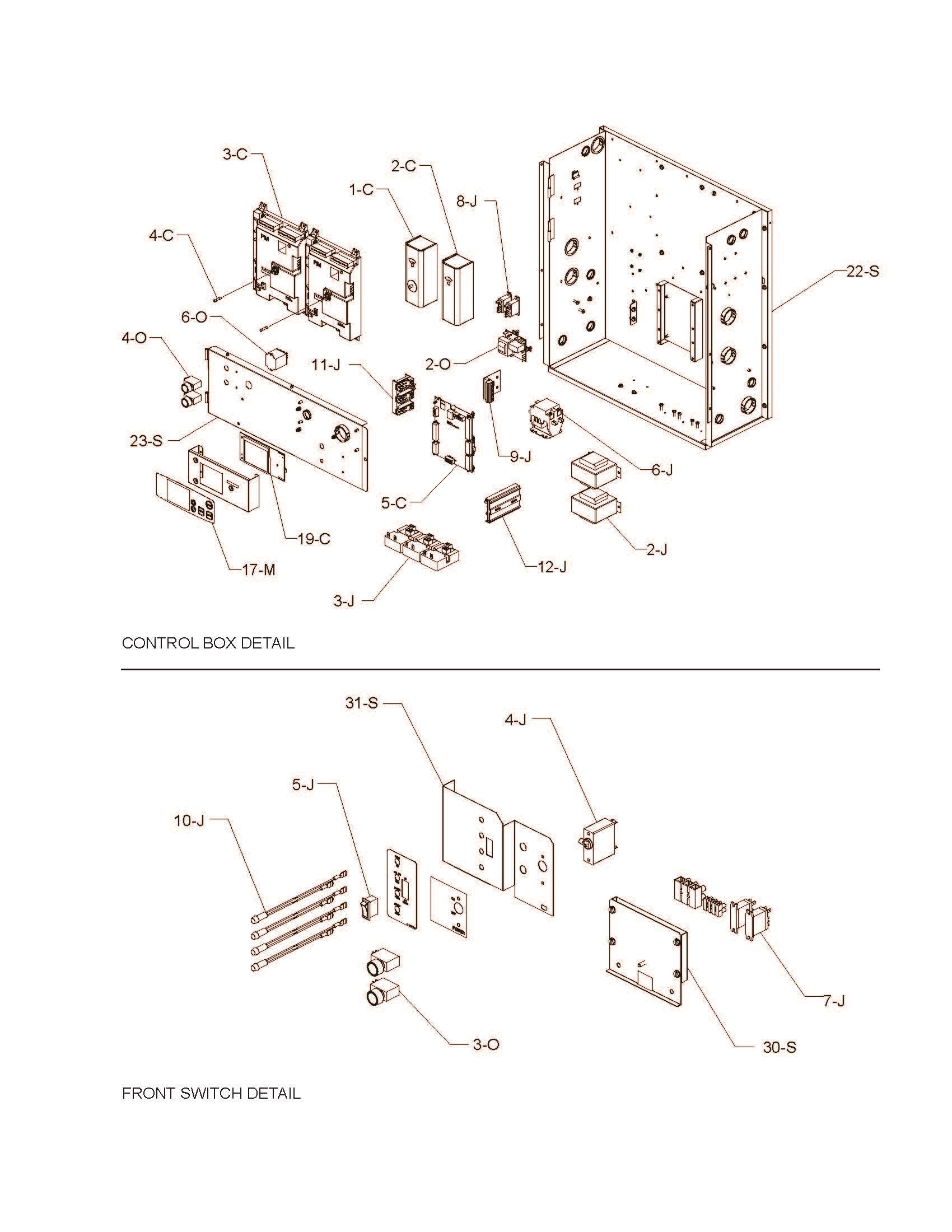

1-C
1-C
008081F
Manual-Reset Adjustable High-Limit 200�F Max
Product #:
Mfg #: 008081F
1-C
2-C
2-C
007141F
Auto-Reset Adjustable High-Limit 240�F Max
Product #:
Mfg #: 007141F
2-C
2-C
006445F
Auto-Reset Adjustable High-Limit 180�F Max
Product #:
Mfg #: 006445F
2-C
2-C
012546F
Auto-Reset Adjustable High-Limit 200�F Max
Product #:
Mfg #: 012546F
Wholegoods
There are no wholegoods available.
