Jandy
ePump™+ SVRS Variable Speed Pump without Controller 2.7HP 230V
Product #:TLD-10-2072
Mfg. Part #:JEP2.0SVRS
- This product is obsolete.
- The superseded product was not found.

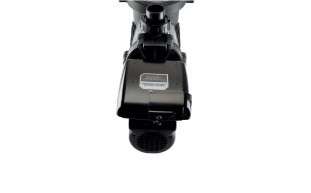

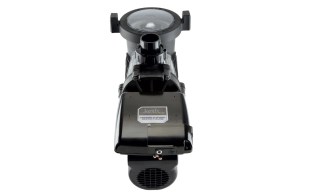

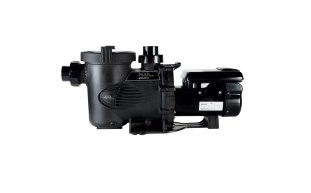

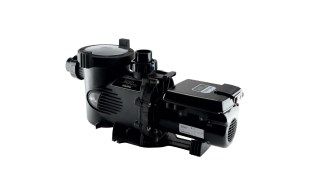

Jandy JEP2.0SVRS ePump™+ SVRS Variable Speed Pump without Controller 2.7HP 230V
Jandy
ePump™+ SVRS Variable Speed Pump without Controller 2.7HP 230V
Product #:TLD-10-2072
Mfg. Part #:JEP2.0SVRS
EA
Description
The ePump™ combines energy efficiency with a Safety Vacuum Release System (SVRS) for enhanced peace of mind. With eight variable speeds and a high-efficiency motor, the ePump™ with SVRS is one of the quietest and most efficient pumps available. This Energy Star® certified pump consumes significantly less energy than a comparable 2.0HP single-speed pumps, offering savings of over $1,100 per year, based on a 28,000 gallon pool with 2 turnovers per day at an average power cost of 0.195/kWh. SVRS technology aids in the prevention of full body entrapment hazards in compliance with the VGB Pool & Spa Safety Act (P&SS Act), and utilizes an ANSI®/ASME® A112.19.17 certified Suction Vacuum Release System.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandJandy
- ApplicationPool
- Shipping Dimensions33 x 15.2 x 18.3 inch
- ChannelPool Equipment
- ColorBlack
- Each Product Weight69.8 pound
- Green or Energy Efficient ProductTrue
- Horsepower2.7 horse power
- Minimum Sell Quantity1
- Motor SpeedVariable
- Pallet Quantity8
- PhaseSingle
- Product Height15.25 inch
- Product Width11.625 inch
- RPMs Max3450
- RPMs Min600
- Standards ApprovalsNSF Certified, Energy Star Certified, ETL Certified
- Voltage230V
- Warranty - General3 years
- UPC Code052337062701
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
R0562205
Motor w/ Drive, ePump + SVRS Series
Product #:
Mfg #: R0562205
2
2
R0445200
TLD-101-2030
Product #: TLD-101-2030
Mfg #: R0445200
3
3
R0445305
TLD-101-2004
R0445305 2HP FR SHP/ PHP IMPELLER & DIFFUSER KIT
Product #: TLD-101-2004
Mfg #: R0445305
3
3
4
5
5
5
5
5
5
5
5
SPX3200SA
HAY-101-3201
Product #: HAY-101-3201
Mfg #: SPX3200SA
5
5
SPX4000SA2
HAY-101-1517
Hayward Shaft Seal Assembly
Product #: HAY-101-1517
Mfg #: SPX4000SA2
6
