Hayward
24" Pro Series Side Mount Sand Filter with 2" Slide Valve
Product #:HAY-05-229
Mfg. Part #:S244SV
Hayward ProSeries S244SV 24" Side Mount Sand Filter with 2" Slide Valve
Hayward
24" Pro Series Side Mount Sand Filter with 2" Slide Valve
Product #:HAY-05-229
Mfg. Part #:S244SV
EA
Description
Hayward ProSeries S244SV 24" Side Mount Sand Filter with 2" Slide Valve. ProSeries top-mount and side-mount sand filters utilize a precision engineered umbrella-fold self-cleaning lateral system to provide efficient flow and evenly distributed water for totally balanced backwashing and long lasting performance.
Branch Availability
content loaded
Specifications
- BrandHayward
- ApplicationInground, Ponds, Pool, Spa
- Shipping Dimensions24.6 x 24.6 x 44 inch
- ChannelPool Equipment
- Commercial, Residential, or ProfessionalCommercial, Professional, Residential
- Each Product Weight62 pound
- Filter Control Valve2 Inch Slide Valve
- Filtration Area3.14 square feet
- Filtration Rate62 GPM/ft2
- Maximum Working Pressure50 pounds per square inch
- Minimum Sell Quantity1
- Mounting BaseInjection-Molded Polymer
- Mounting TypeSide
- Pallet Quantity8
- Side Clearance18 inch
- Vertical Clearance18 inch
- Warranty - General1 years
- UPC Code0610377056724
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

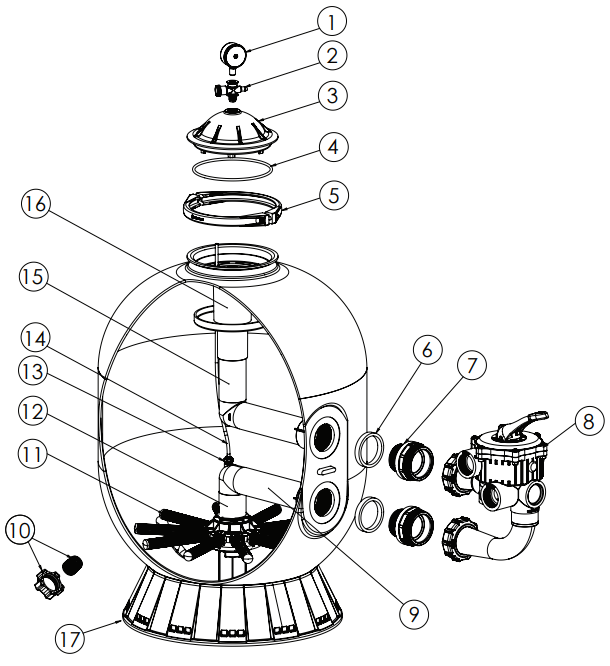

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
2
3
4
5a
5b
6
7
8a
8a
SP0710X62
HAY-06-253
Product #: HAY-06-253
Mfg #: SP0710X62
8b
8b
SP715X62
2" VariFlo Control Valve
Product #:
Mfg #: SP715X62
9a
9a
SX244CD2FWS
HAY-051-7925
Product #: HAY-051-7925
Mfg #: SX244CD2FWS
9b
9b
SX310CD2FWS
HAY-051-7926
Product #: HAY-051-7926
Mfg #: SX310CD2FWS
10
11a
11a
SX200QNRPAK10
Ribbed lateral pack of 10 20"
Product #:
Mfg #: SX200QNRPAK10
11b
11b
SX240DNRPAK10
Ribbed lateral pack of 10 24"
Product #:
Mfg #: SX240DNRPAK10
