Hayward
150 Sq Ft StarClear™ Plus Single Element Filter Cartridge Filter
Product #:HAY-05-1502
Mfg. Part #:C1502
- This product is obsolete.
- The superseded product was not found.
Hayward StarClear™ Plus C1502 150 SqFt Single Element Filter Cartridge 120 gpm 50 psi 2" FIP
Hayward
150 Sq Ft StarClear™ Plus Single Element Filter Cartridge Filter
Product #:HAY-05-1502
Mfg. Part #:C1502
EA
Description
Hayward StarClear™ Plus C1502 150 SqFt Single Element Filter Cartridge 120 gpm 50 psi 2" FIP. StarClear Plus single element cartridge filters offer excellent quality, value and convenience.
Documents
Branch Availability
content loaded
Specifications
- BrandHayward
- ApplicationInground, Pool, Spa
- Shipping Dimensions13.8 x 13.8 x 36.6 inch
- ChannelNone
- Each Product Weight30 pound
- Filter Tank Molding TypeHigh-Strength, Injection-Molded Durable Glass Reinforced Copolymer
- Filtration Area150 square feet
- Green or Energy Efficient ProductTrue
- Master Carton Quantity1
- Maximum Flow Rate120 gal/min
- Maximum Working Pressure50 pounds per square inch
- Minimum Sell Quantity1
- Pallet Quantity18
- Pipe Size2 inch
- Product Weight29 pound
- Side Clearance18 inch
- Vertical Clearance25 inch
- Warranty - General1 years
- UPC Code0610377147200
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

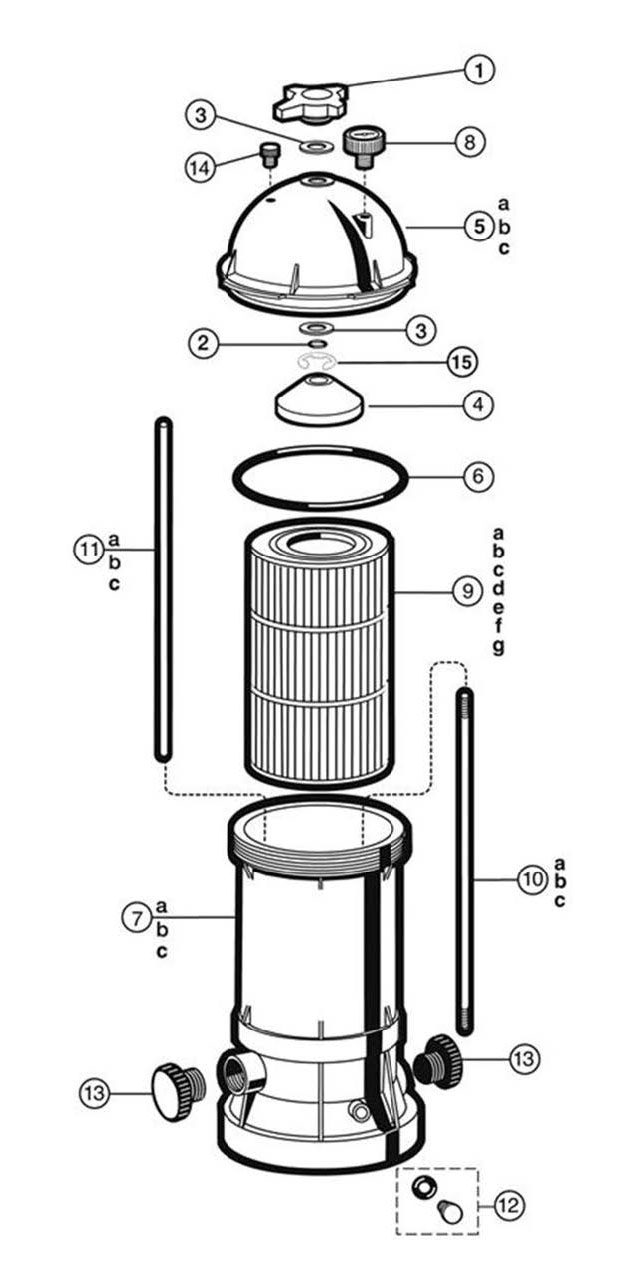

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
-
-
2
2
2
2
2
2
35505-1223
SWQ-061-3955
35505-1223 2" SM MPV ORING KIT
Product #: SWQ-061-3955
Mfg #: 35505-1223
2
2
2
57006800
AMP-251-1339
57006800 AIR RELIEF ORING
Product #: AMP-251-1339
Mfg #: 57006800
2
3
3
CX900W
HAY-051-1741
CX900W STARCLEAR PLUS WASHER
Product #: HAY-051-1741
Mfg #: CX900W
3
3
3
3
G-363-9
ALA-601-7355
G-363-9 GASKET AMP 501407/HAY SP710Z16
Product #: ALA-601-7355
Mfg #: G-363-9
