20" Max XGT Brushless Cordless Chain Saw Kit with High Power Battery 40V

Product #:MAK-59-1223

Mfg. Part #:GCU08E


Makita GCU08E 20" Max XGT Brushless Cordless Chain Saw Kit with High Power Battery 40V

Makita

20" Max XGT Brushless Cordless Chain Saw Kit with High Power Battery 40V

Product #:MAK-59-1223

Mfg. Part #:GCU08E

EA

Description

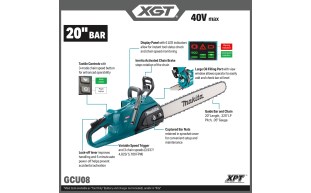

The 40V max XGT® 20" Chain Saw (GCU08) delivers the power of a 50cc gas rear handle chain saw designed with high chain speed (5,700 FPM). The GCU08 cuts up to 25% faster than a 50cc gas chain saw. It features Extreme Protection Technology (XPT™) & IPX4M rating, engineered for use in rainy conditions. The 20” Chain Saw features tactile controls with a 3-mode button that allows the user to adjust the chain speed. It also eliminates pull starts by having an easily accessible on/off power button. It also features a display panel with 6 LED indicators that allows for instant tool status check and chain speed monitoring.

Documents

Feature Bullets

  • Outpower: Makita-built brushless motor delivers the power of a 50cc gas chain saw
  • Outsmart: Cuts up to 25% faster than a 50cc gas chain saw
  • Outlast: Extreme Protection Technology (XPT™) & IPX4M rating engineered for use in rainy conditions*
  • BL4080H 8.0Ah High Power Battery features tabless cell technology delivering up to 35% More Power** for optimal cutting performance with GCU08
  • Tactile controls with 3-mode chain speed button for enhanced operability; on/off power button eliminates pull starts
  • Display panel with 6 LED indicators allow for instant tool status check and chain speed monitoring
  • Variable trigger and 3 chain speeds (3,937/ 4,823/ 5,700 FPM) for improved speed control and cutting performance
  • Lock-off lever improves handling and 5-minute auto power-off helps prevent accidental activation while conserving battery life
  • Includes 20" sprocket nose guide bar and .325" low profile pitch, .050”-gauge chain
  • No gas, emissions, oil mixing or pull starts

    • Branch Availability

    content loaded

    Specifications

    • BrandMakita
    • ApplicationLandscaping
    • Shipping Dimensions10.56 x 24.77 x 13.19 inch
    • ChannelNone
    • ColorBlack, Teal
    • Commercial, Residential, or ProfessionalResidential
    • Each Product Weight18.68 pound
    • Minimum Sell Quantity1
    • Pallet Quantity18
    • Warranty - General3 years
    • Includes(1) 40V max XGT® Lithium-Ion High Power 8.0Ah battery, rapid charger, 20" guide bar, and 20" saw chain
    • UPC Code197050012814

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

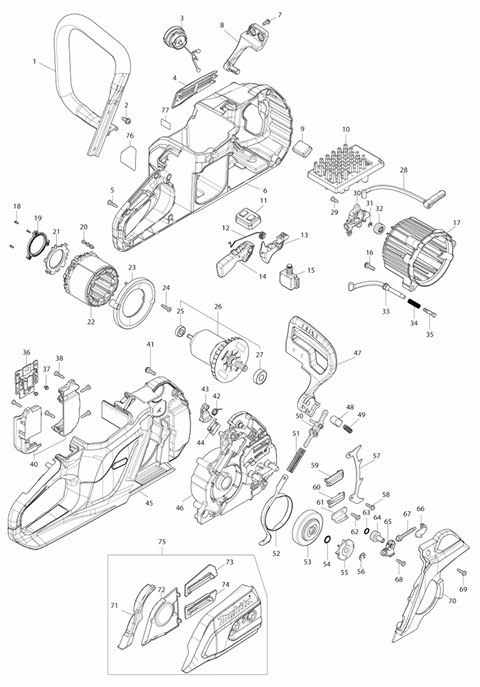

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    001
    001
    327F81-8
    Front handle
    Product #:
    Mfg #: 327F81-8
    002
    002
    911218-7
    Pan head screw M5X14 WR
    Product #:
    Mfg #: 911218-7
    Notes:
    Qty 4
    003
    003
    122K21-9
    Tank cap assembly
    Product #:
    Mfg #: 122K21-9
    004
    004
    4133J6-1
    Dust cover
    Product #:
    Mfg #: 4133J6-1
    038
    038
    266326-2
    Binding head tapping screw 4X18
    Product #:
    Mfg #: 266326-2
    Notes:
    Qty 5
    045
    045
    1831N6-8
    Housing set
    Product #:
    Mfg #: 1831N6-8
    007
    007
    911118-1
    Pan head screw M4X12 WR
    Product #:
    Mfg #: 911118-1
    Notes:
    Qty 2
    008
    008
    4133G1-0
    Front hand guard retainer
    Product #:
    Mfg #: 4133G1-0
    009
    009
    620S23-2
    Indication circuit
    Product #:
    Mfg #: 620S23-2
    010
    010
    620P60-8
    Controller
    Product #:
    Mfg #: 620P60-8
    011
    011
    620S22-4
    Switch circuit
    Product #:
    Mfg #: 620S22-4
    012
    012
    232850-7
    Torsion spring 10
    Product #:
    Mfg #: 232850-7
    013
    013
    413C93-0
    Switch lever
    Product #:
    Mfg #: 413C93-0
    014
    014
    141V01-2
    Lock off lever complete
    Product #:
    Mfg #: 141V01-2
    015
    015
    650049-6
    Switch C3JR-1A-PAXD5
    Product #:
    Mfg #: 650049-6

    Wholegoods

    There are no wholegoods available.
