Hayward SandMaster SM2106TW 21" Sand Filter with 6-Way Valve
Description
Hayward SM2106TW 21" SandMaster Filter Series with 6 Way Valve provides smooth, efficient flow and totally balanced backwashing for the best value in filtration. Molded of durable, corrosion-proof reinforced thermoplastic, the SandMaster will provide years of trouble-free operation with minimal maintenance. The SandMaster Series filters set a new standard for performance, value and dependability.
Documents
Branch Availability
content loaded
Specifications
- BrandHayward
- ApplicationInground, Pool
- Shipping Dimensions21 x 21 x 39.5 inch
- Commercial, Residential, or ProfessionalResidential
- Design Flow Rate44 gal/min
- Each Product Weight40 pound
- Filtration Area2.2 square feet
- Master Carton Quantity1
- MaterialThermoplastic
- Maximum Working Pressure50 pounds per square inch
- Minimum Sell Quantity1
- Pallet Quantity1
- Sand Required225 pound
- UPC Code0610377138123

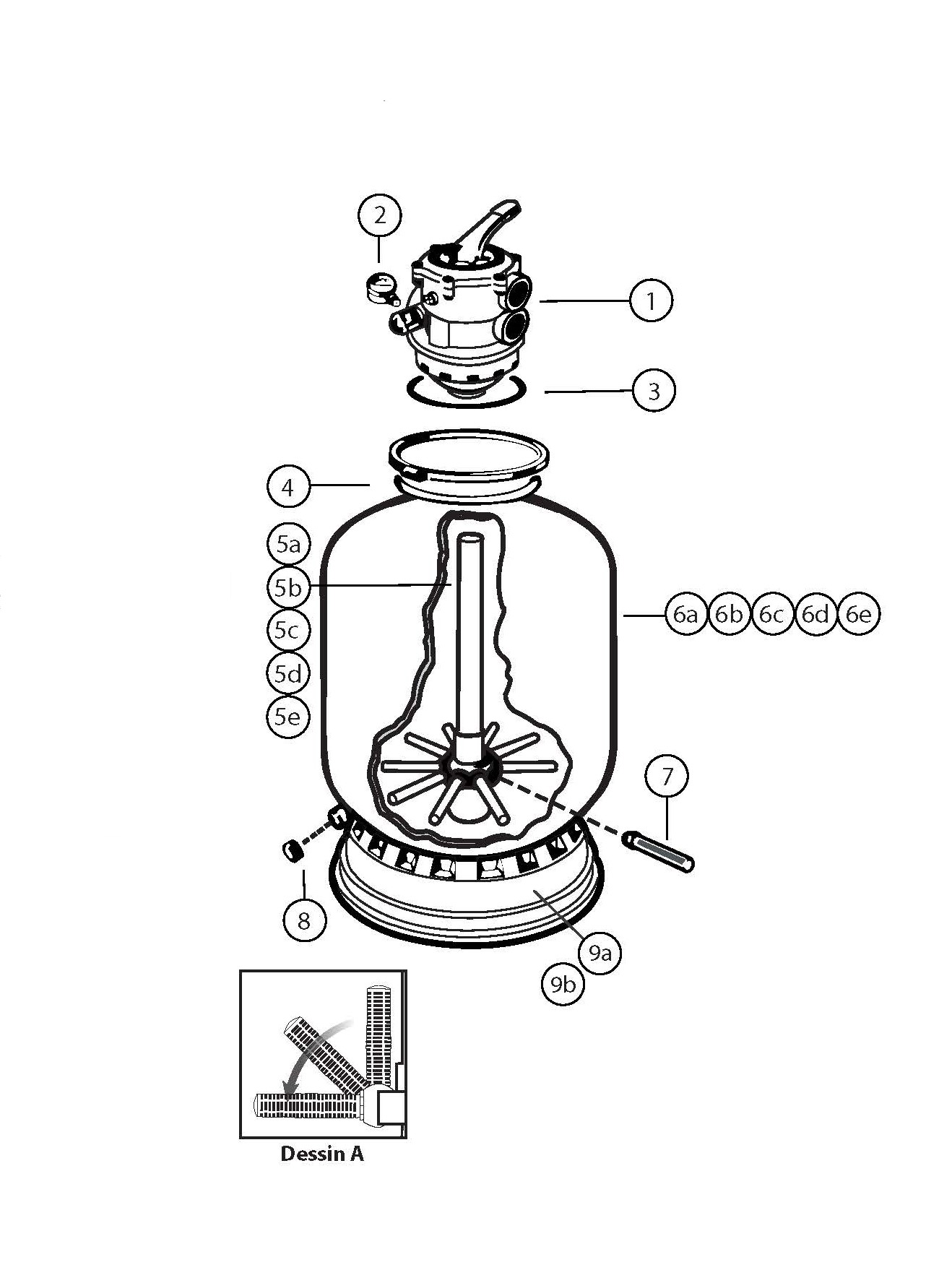

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
SP-0714TC
Vari-Flo Control Valve 6-Position
Product #:
Mfg #: SP-0714TC
2
2
EC-2708-1
Pressure Gauge
Product #:
Mfg #: EC-2708-1
3
3
GM-600-F
Valve/Tank O-Ring
Product #:
Mfg #: GM-600-F
4
4
GM-600-NM
Flange Clamp (Valve Tank)
Product #:
Mfg #: GM-600-NM
5a
5a
S-170-DA
Lateral Assy. (SM1706T)
Product #:
Mfg #: S-170-DA
5b
5b
S-180-DA
Lateral Assy. (SM1906T)
Product #:
Mfg #: S-180-DA
5c
5c
S-210-DA
Lateral Assy. (SM2106T)
Product #:
Mfg #: S-210-DA
5d
5d
S-220-DA
Lateral Assy. (SM2306T)
Product #:
Mfg #: S-220-DA
5e
5e
S-244-DA
Lateral Assy. (SM2506T)
Product #:
Mfg #: S-244-DA
6a
6a
DP-10298-B
Filter Tank (SM1706T)
Product #:
Mfg #: DP-10298-B
6b
6b
S-180-AB
Filter Tank (SM1906T)
Product #:
Mfg #: S-180-AB
6c
6c
S-210-AB
Filter Tank (SM2106T)
Product #:
Mfg #: S-210-AB
6d
6d
S-220-AB
Filter Tank (SM2306T)
Product #:
Mfg #: S-220-AB
6e
6e
S-244-AB
Filter Tank (SM2506T)
Product #:
Mfg #: S-244-AB
7
7
S-200-Q
Lateral
Product #:
Mfg #: S-200-Q
