Speck SF50B-00000-0SE Sand Filter 24" with 2" Multi-port Valve
EA
Description
Speck Sand Filter combines the ease of operation, durability and precision engineering allowing high flow for excellent water clarity. Perfect for residential above-ground, on-ground, and in-ground pools.
Documents
Branch Availability
content loaded
Specifications
- BrandSPECK PUMPS
- ApplicationPool
- Shipping Dimensions24 x 24 x 43 inch
- MaterialPlastic
- ChannelNone
- Commercial, Residential, or ProfessionalResidential
- Each Product Weight36 pound
- Filtration Area3.14 square feet
- Includes2" Multi-port valve and pressure gauge
- Maximum Flow Rate62 gal/min
- Maximum Working Pressure35 pounds per square inch
- Minimum Sell Quantity1
- Pallet Quantity8
- Product Height46.1 inch
- Product Weight36 pound
- Product Width24 inch
- Sand Required300 pound
- Tank Diameter24 inch
- Valve Plumbing Size2 inch
- UPC Code840182102723

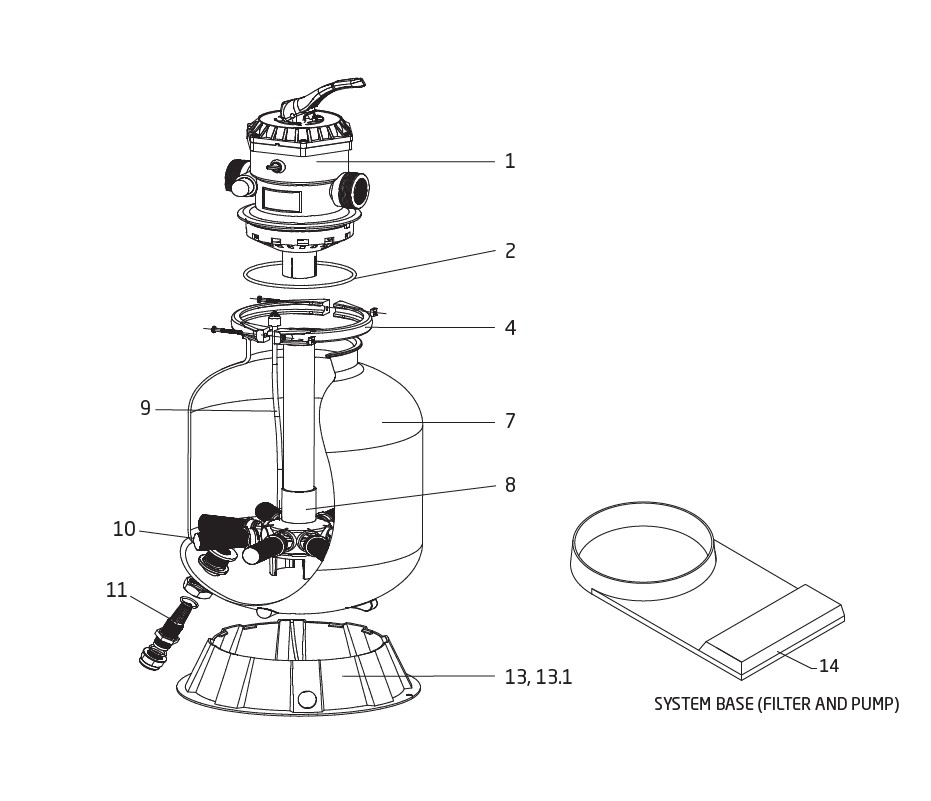

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
647304071000
1.5” Multiport Valve 6-way CPL - (16”, 19”, 24”)
Product #:
Mfg #: 647304071000
1.1
1.1
647309071000
2” Multiport Valve 6-way CPL - (24”, 31”)
Product #:
Mfg #: 647309071000
2
2
654310120800
O-ring - Tank - (16”, 19”, 24”, 31”)
Product #:
Mfg #: 654310120800
4
4
647304072000
Flange V Clamp Assembly - (16”, 19”, 24”, 31”)
Product #:
Mfg #: 647304072000
7
7
647304008000
Tank - (16”)
Product #:
Mfg #: 647304008000
7
7
647305008000
Tank - (19”)
Product #:
Mfg #: 647305008000
7
7
647306008000
Tank - (24”)
Product #:
Mfg #: 647306008000
12, 13.2, 14, 15
12, 13.2, 14, 15
647308072000
Tank CPL w/ Base, Drain Plug, & Lateral Assembly - (31”)
Product #:
Mfg #: 647308072000
8
8
647304079000
Hub w/ Standpipe - (16”)
Product #:
Mfg #: 647304079000
8
8
647305071000
Hub w/ Standpipe - (19”)
Product #:
Mfg #: 647305071000
8
8
647306072000
Hub w/ Standpipe - (24”, 1.5” Valve)
Product #:
Mfg #: 647306072000
Not Shown
Not Shown
647309078000
Folding Lateral Assembly w/ Standpipe - (24“, 2” Valve)
Product #:
Mfg #: 647309078000
15
15
647308071000
Folding Lateral Assembly w/ Standpipe - (31“, 2” Valve)
Product #:
Mfg #: 647308071000
9
9
647304172000
Air Release Assembly - (16”)
Product #:
Mfg #: 647304172000
Wholegoods
There are no wholegoods available.
