Magic Plastics

2" CR2 Corrosion Resistant Check Valve

Product #:MAG-56-0806

Mfg. Part #:0801-20H2


Magic Plastics CR2 0801-20H2 2" Corrosion Resistant Check Valve

Magic Plastics

2" CR2 Corrosion Resistant Check Valve

Product #:MAG-56-0806

Mfg. Part #:0801-20H2

Description

The “CR2” Back-Flow prevention check valve is completely corrosion resistant, making it the ultimate solution for protecting your expensive Heat Exchangers from the potential damage of inline Chlorinators while also maintaining a Full-Flow circulation system. Numerous features are included with the “CR2” Valve including a proprietary designed Hastelloy Spring, Glass-Filled Noryl injection molded shaft, 100% Silicone Gasket and a Clear, serviceable lid. The “CR2” Valve is also equipped with a ½ lb. spring-loaded gate, allowing it to be installed in any orientation.

Documents

No documents available

Branch Availability

content loaded

Specifications

  • BrandMagic Plastics
  • ApplicationPool
  • Shipping Dimensions7 x 4 x 4 inch
  • Commercial, Residential, or ProfessionalResidential
  • Each Product Weight1.5 pound
  • Master Carton Quantity12
  • MaterialCPVC
  • Minimum Sell Quantity1
  • UPC Code758614150450

WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

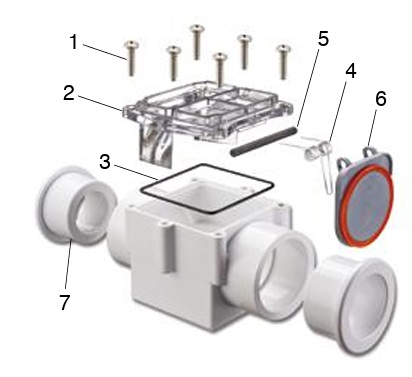

Parts & Schematics

content loaded
Mfg #
Product #
Description
Notes
1
1
0403-006-6
#14 x 1" Phillips Pan Head Stainless Metal Screw
Product #:
Mfg #: 0403-006-6
Notes:
6
2
2
0191401020
MAG-561-0000
Product #: MAG-561-0000
Mfg #: 0191401020
Notes:
1
3
3
0301-154
MAG-561-0001
Product #: MAG-561-0001
Mfg #: 0301-154
Notes:
1
4
4
0405-001
Spring, 2" Swing-Spring Check Valve
Product #:
Mfg #: 0405-001
Notes:
1
4
4
0405-001-H
Hastelloy Spring
Product #:
Mfg #: 0405-001-H
Notes:
1
5
5
0401-005P
Shaft, 2" Swing-Spring Check Valve
Product #:
Mfg #: 0401-005P
Notes:
1
6
6
081201020
Gate Assembly, 2" Swing-Spring Check Valve
Product #:
Mfg #: 081201020
Notes:
1
7
7
060104028
Adapter, 2" Spigot x 1�� Slip Black
Product #:
Mfg #: 060104028
Notes:
1
-
-
0801-20H-RK
MAG-56-0801
Product #: MAG-56-0801
Mfg #: 0801-20H-RK
Notes:
1
