Little Giant
Oil Filled Direct Drive Submersible or In-line Pump 115V
Product #:LGP-10-1600
Mfg. Part #:503375
Little Giant 503375 Oil Filled Direct Drive Submersible or In-line Pump 115V
Little Giant
Oil Filled Direct Drive Submersible or In-line Pump 115V
Product #:LGP-10-1600
Mfg. Part #:503375
Description
Dual purpose oil-filled pump that may be used totally submersed or in-line (fed with pipe or hose). For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 500 GPH pump features a 1/2" MNPT discharge and 17.3' shut-off head capability.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandLittle Giant
- Amps High Speed3.2
- Shipping Dimensions9 x 6.5 x 6.5 inch
- Amps Low Speed3.2
- Cord Length15 foot
- Each Product Weight8 pound
- Frequency Rating (Hz)60
- Master Carton Quantity2
- MaterialAluminum, Nylon, Polypropylene or polypropene
- Max Liquid Temperature120 degrees Fahrenheit
- Minimum Sell Quantity1
- Power Rating220 watt
- Shut Off17.3 foot
- Voltage115V
- UPC Code0010121033757
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

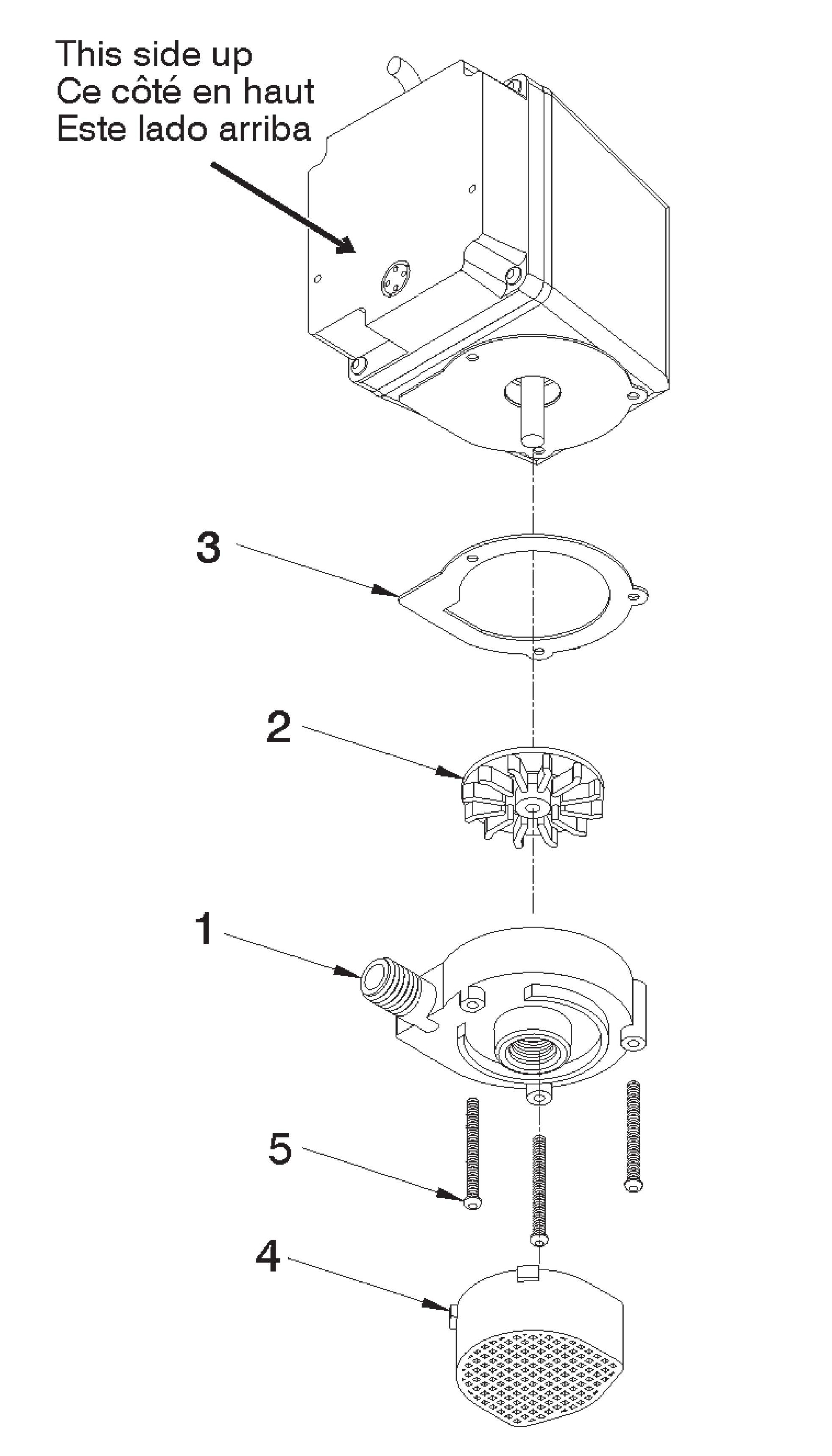

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
103330
LGP-101-5719
103330 #3E-12N NYLON VOLUTE
Product #: LGP-101-5719
Mfg #: 103330
1
1
103334
VOLUTE, 3/4 NPT
Product #:
Mfg #: 103334
Notes:
Catalog Number/Model: 503603/3E-34N, 504103/4E-34N, 504203/4E-34NR, 504186/4E-34... 1
1
103375
VOLUTE, 1/2 NPT, BLACK
Product #:
Mfg #: 103375
Notes:
Catalog Number/Model: 503403/3E-12N, 503376/3E-12NY, & 503375/3E-12N-WG 2
2
104435
LGP-101-5723
104435 #4 NYLON IMPELLER
Product #: LGP-101-5723
Mfg #: 104435
2
2
103437
LGP-101-5720
103437 #3 NYLON IMPELLER
Product #: LGP-101-5720
Mfg #: 103437
3
3
103601
LGP-101-5722
103601 #3 & #4 VOLUTE GASKET
Product #: LGP-101-5722
Mfg #: 103601
4
4
102909
LGP-101-2746
102909 #2 INTAKE SCREEN
Product #: LGP-101-2746
Mfg #: 102909
4
4
102376
SCREEN, INTAKE, BLACK
Product #:
Mfg #: 102376
Notes:
Catalog Number/Model: 503403/3E-12N, 503376/3E-12NY, & 503375/3E-12N-WG 5
5
902501
LGP-101-5744
902501 #3E SCREW
Product #: LGP-101-5744
Mfg #: 902501
6
6
929500
BOLT, EYE 8-32, 18-8SS (Not Shown)
Product #:
Mfg #: 929500
Notes:
Catalog Number/Model: 503038/3E-12N & 504038/4E-34N Wholegoods
There are no wholegoods available.
