Jandy

VS FloPro™ Pool Pump 1.3HP 115/230V with SpeedSet Controller

Product #:TLD-10-0005

Mfg. Part #:VSFHP130DVS

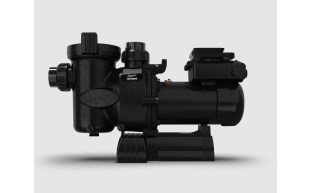

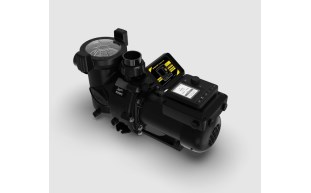

Jandy® VS FloPro™ VSFHP130DVS Variable-Speed Pool Pump 1.3HP 115/230V with SpeedSet Controller

Jandy

VS FloPro™ Pool Pump 1.3HP 115/230V with SpeedSet Controller

Product #:TLD-10-0005

Mfg. Part #:VSFHP130DVS

EA

Description

Jandy® VS FloPro™ VSFHP130DVS Variable-Speed Pool Pump 1.3HP 115/230V with SpeedSet Controller. The Jandy® VS FloPro™ 1.3 HP makes no compromises when it comes to performance, delivering both value and efficiency. Engineered for hassle-free installation, it features 115v/230v auto-sensing, dual voltage compatibility offering identical hydraulic performance at either voltage and comes with an adjustable base to properly align plumbing for the replacement of competitor brand pumps without replumbing. The VS FloPro™ 1.3 HP is perfect to use as a filtration pump on smaller pools or to power basic water features. Available with the Jandy® SpeedSet™ Controller for quick and easy programming and simple maintenance, it’s also compatible with the iQPUMP01 for automated control via AquaLink® automation systems and the iAquaLink® app for effortless pump control. With its compact size, energy-saving operation and installation-friendly features, it’s the ideal replacement for older single-speed pumps.

Branch Availability

content loaded

Specifications

  • BrandJandy
  • ApplicationPool
  • Shipping Dimensions28.63 x 13.2 x 16.25 inch
  • Each Product Weight34.4 pound
  • Minimum Sell Quantity1
  • Warranty - General3 years
  • UPC Code052337101752

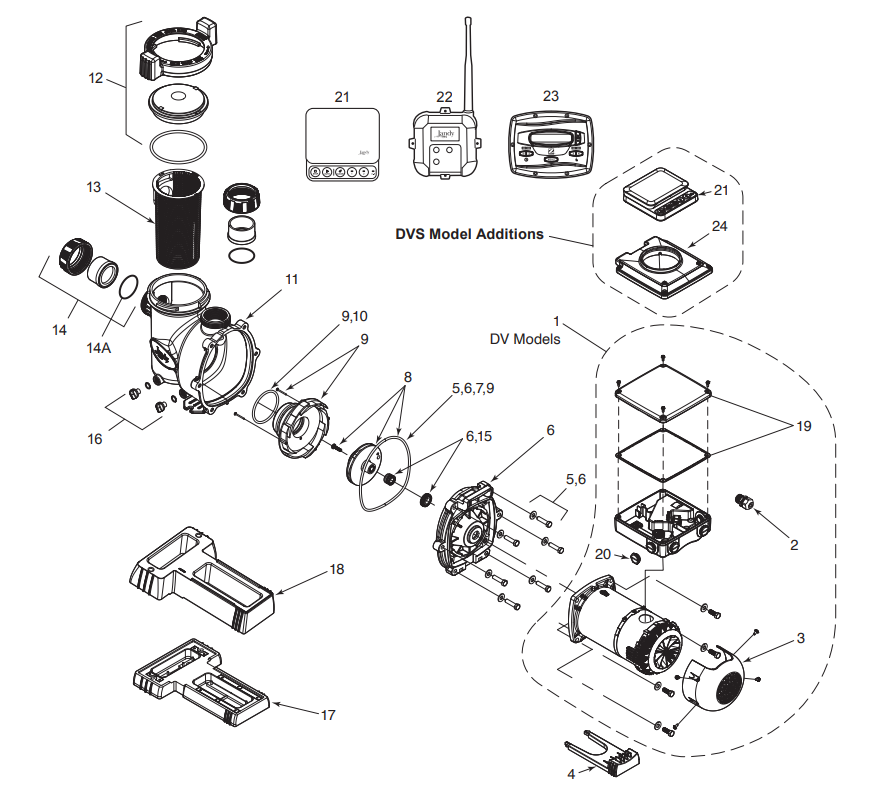

Parts & Schematics

content loaded
Mfg #
Product #
Description
Notes
1
1
R0960000
TLD-101-0002
Product #: TLD-101-0002
Mfg #: R0960000
1
1
R0960100
TLD-101-0003
Product #: TLD-101-0003
Mfg #: R0960100
1
1
R0960200
TLD-101-0004
Product #: TLD-101-0004
Mfg #: R0960200
2
2
R0501101
TLD-101-1101
Product #: TLD-101-1101
Mfg #: R0501101
3
3
R0960400
TLD-101-0005
Product #: TLD-101-0005
Mfg #: R0960400
4
4
R0479902
TLD-101-1010
Product #: TLD-101-1010
Mfg #: R0479902
5
5
R0480500
TLD-101-7209
Product #: TLD-101-7209
Mfg #: R0480500
Notes:
Mounting Bolts/Washers (6), Backplate, O-Ring
6
6
R0479500
TLD-151-1003
Product #: TLD-151-1003
Mfg #: R0479500
Notes:
Mounting Bolts/Washers, O-Ring, Mechanical Seal (Carbon & Ceramic)
7
7
R0480300
TLD-101-2034
Product #: TLD-101-2034
Mfg #: R0480300
7
7
O-465-9
SPG-601-1207
Product #: SPG-601-1207
Mfg #: O-465-9
8
8
R0479602
TLD-101-2037
Product #: TLD-101-2037
Mfg #: R0479602
8
8
R0479603
TLD-101-2038
Product #: TLD-101-2038
Mfg #: R0479603
8
8
R0479604
TLD-101-5054
Product #: TLD-101-5054
Mfg #: R0479604
9
9
R0479702
TLD-101-2040
Product #: TLD-101-2040
Mfg #: R0479702
Notes:
1.3 HP
9
9
R0479701
TLD-101-2039
Product #: TLD-101-2039
Mfg #: R0479701
Notes:
1.65/1.85 HP

Wholegoods

There are no wholegoods available.
