Hayward
King Shark 2 Pool Cleaner with 150 Ft Swivel EXPORT ONLY
Product #:AQV-20-512
Mfg. Part #:RC9850D
- This product is obsolete.
- The superseded product was not found.
Hayward RC9850D King Shark 2 Pool Cleaner with 150 Ft Swivel EXPORT ONLY
Hayward
King Shark 2 Pool Cleaner with 150 Ft Swivel EXPORT ONLY
Product #:AQV-20-512
Mfg. Part #:RC9850D
EA
Description
Hayward RC9850D King Shark 2 Pool Cleaner with 150 Ft Swivel EXPORT ONLY. KingShark™ 2 is made for Olympic size pools larger than 30' x 60'. In fact it's the world's most popular commercial pool cleaner. KingShark 2 is completely automatic and self-contained with no hoses or filter hook-ups. An AV swivel allows it to maneuver throughout the entire pool while avoiding obstacles and minimizing cord twisting. Universities, schools, resorts and recreation departments count on the performance and dependability of KingShark 2.
Documents
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandHayward
- ApplicationPool
- Shipping Dimensions32 x 26 x 24 inch
- ColorGray
- ChannelNone
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight110 pound
- Master Carton Quantity1
- Minimum Sell Quantity1
- Pallet Quantity1
- Pool SizeOlympic size pools larger than 30' x 60'
- Product Weight110 pound
- Warranty - General2 years
- UPC Code0610377066716
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

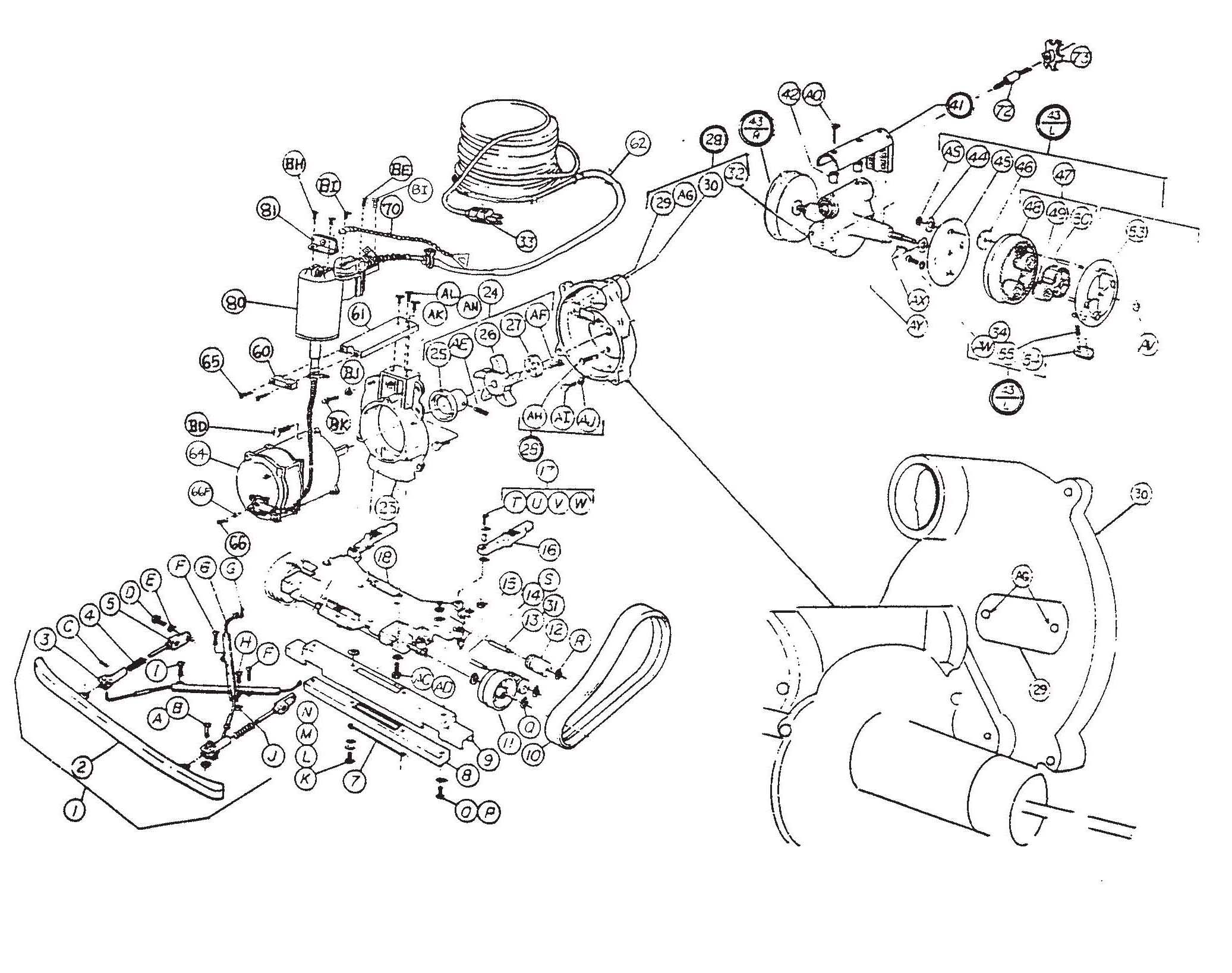

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
3211
BAR - SENSOR ASSEMBLY
Product #:
Mfg #: 3211
2
2
3210
BAR - SENSOR
Product #:
Mfg #: 3210
3
3
3208
SLIDE - SENSOR BAR
Product #:
Mfg #: 3208
A
A
4208
SCREW RD HD 1/4-20X1 1/4 SS
Product #:
Mfg #: 4208
B
B
3209
NUT HEX 1/4-20 SS
Product #:
Mfg #: 3209
C
C
1703D
HAIR PIN COTTER 1/16X1/2 SS
Product #:
Mfg #: 1703D
4
4
2207L
SPRING - SENSOR BAR SLIDE SS
Product #:
Mfg #: 2207L
5
5
2206
ARM - SENSOR BAR ADJUSTING
Product #:
Mfg #: 2206
D
D
2121B
BOLT HEX HD 1/4-20X3/4 SS
Product #:
Mfg #: 2121B
E
E
2220B
WASHER FLAT 1/4 SS
Product #:
Mfg #: 2220B
6
6
2212-81
CABLE - ASSEMBLY
Product #:
Mfg #: 2212-81
F
F
2212A
SCREW PAN HD 10-32X1 1/4 SS
Product #:
Mfg #: 2212A
G
G
1703D
HAIR PIN COTTER 1/6X1/2 SS
Product #:
Mfg #: 1703D
H
H
2102B
SCREW RD HD 10-32X1 1/4 SS
Product #:
Mfg #: 2102B
I
I
2606A
SCREW RD HD 10-32X1 SS
Product #:
Mfg #: 2606A
Wholegoods
There are no wholegoods available.
