Magnum Force® In Ground 1 Speed Pump 0.5HP 115/230V 60Hz
Product #:JAC-10-512
Mfg. Part #:94026105
Magnum Force® 94026105 In Ground 1 Speed Pump 0.5HP 115/230V 60Hz
Carvin
Magnum Force® In Ground 1 Speed Pump 0.5HP 115/230V 60Hz
Product #:JAC-10-512
Mfg. Part #:94026105
EA
Description
Carvin Magnum Force® 94026105 In Ground 1 Speed Pump 0.5HP 115/230V 60Hz is performance renowned and available in 1.6HP and 2.7 HP. It's passed US Department of Energy regulations and EnergyStar certifications. Equipped with a strainer basket capacity of 208 in ^3 and the one-way flap assures flow and prevents debris from getting back into the pool. The RING-LOK opening system provides easy access to the basket.
Documents
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandCarvin
- Amps High Speed8.8
- Shipping Dimensions25.5 x 7.56 x 13.63 inch
- Amps Low Speed4.4
- ApplicationInground, Pool
- ChannelNone
- Each Product Weight37 pound
- Frequency Rating (Hz)60
- Horsepower0.5 horse power
- Includes2" Black Unions, Cover Handles (Black)
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor Speed1-Speed
- Pallet Quantity1
- Product Depth7.5625 inch
- Product Height13.625 inch
- Product Weight37 pound
- Service Factor1.6
- Standards ApprovalscULus Certified, CSA Certified
- Voltage115V, 230V
- Warranty - General2 years
- Max Liquid Temperature104 degrees Fahrenheit
- UPC Code060993310982

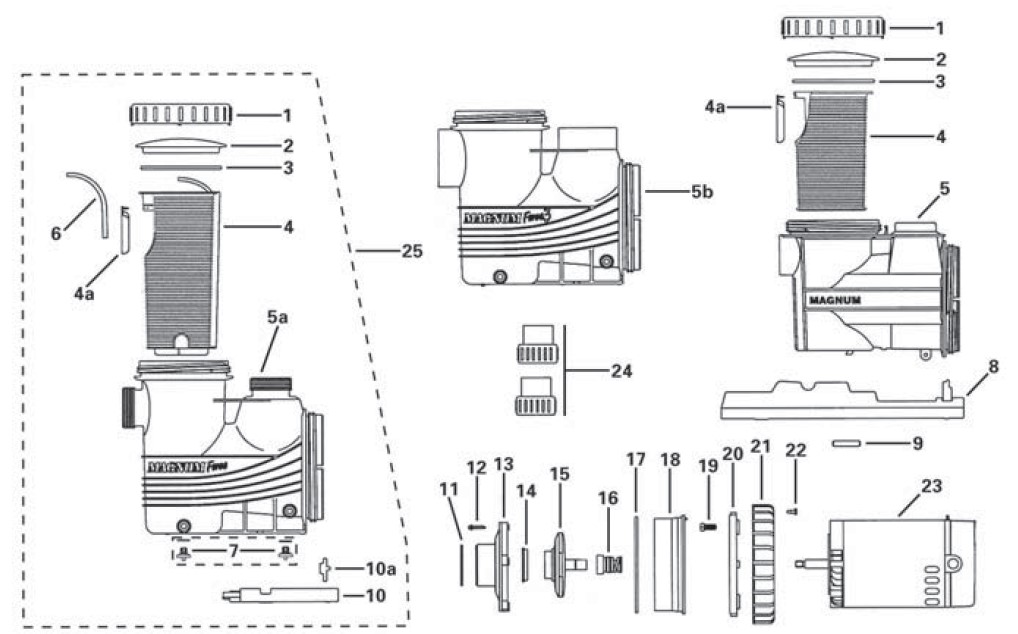

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
42-2828-06-R
Strainer Ring-LokTM
Product #:
Mfg #: 42-2828-06-R
2
2
39-2579-02-R
Strainer Cover
Product #:
Mfg #: 39-2579-02-R
3
3
47-0434-01-R
Strainer O-Ring 5-5/8" x 6-1/8" x 1/4" - Units prior to 7/89
Product #:
Mfg #: 47-0434-01-R
3
3
47-0358-03-R
Strainer O-Ring - Units after 7/89
Product #:
Mfg #: 47-0358-03-R
4
4
16-1097-04-R
Strainer Basket w/Flapper for Magnum Plus
Product #:
Mfg #: 16-1097-04-R
4
4
16-1086-06-R
Strainer Basket (9" tall) w/Flapper for Magnum Force prior to 02/01/03
Product #:
Mfg #: 16-1086-06-R
4
4
16-1134-09-R
Strainer Basket (12" tall) w/Flapper for Magnum Force after 02/01/03
Product #:
Mfg #: 16-1134-09-R
4a
4a
16-1135-10-R
Flapper
Product #:
Mfg #: 16-1135-10-R
5a
5a
03-0906-02-R
JAC-10-9774
Magnum Force Body with Plugs and Basket after 02/01/03
Product #: JAC-10-9774
Mfg #: 03-0906-02-R
5b
5b
03-0907-01-R
Magnum Force 3 Body with Plugs and Basket after 02/01/03
Product #:
Mfg #: 03-0907-01-R
6
6
31-1746-00-R
Strainer Basket Air Bleed Tube
Product #:
Mfg #: 31-1746-00-R
7
7
31-1609-06-R2
Drain Plug w/O-Ring (2 per bag)
Product #:
Mfg #: 31-1609-06-R2
7
7
31-1609-06-R50
Drain Plug w/O-Ring (50 per bag)
Product #:
Mfg #: 31-1609-06-R50
8
8
12-1069-02-R
Base Motor Support Assembly for Magnum Plus
Product #:
Mfg #: 12-1069-02-R
9
9
14-4231-07-R
Dowel Pin 1/4" x 1-1/4" SS for Magnum Plus
Product #:
Mfg #: 14-4231-07-R
